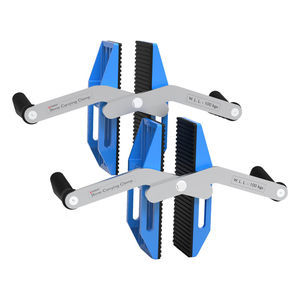

Slab lifting clamp SCC02

stonefor wooden panelsglass plate

General
The Stone Panel Carrier SCC02 with cable is designed for lifting, carrying and moving large, unwieldy sheet materials such as glass, granite, marble, plywood and particleboard. It reduces strain and the risk of injury to fingers, wrists and back and decreases physical fatigue by providing a stable temporary handle clamped to the panel edge, enabling operators to lift with a straight back.

Features

• Finger-trigger jaw opening and load-release mechanism.
• Lightweight, durable aluminium construction.
• Continuously self-adjusting jaws.
• High-friction vulcanized rubber gripping pads on both plates to protect material surfaces.
• Moulded rubber hand grips for comfort and secure handling.
• Automatic locking on panels and vice-like grip when engaged.

Specifications
Metric | Imperial
Grip range: 0 - 52 mm | 0 - 2 in
Working load limit (pair): 150 kg | 331 lb
Net weight (2PCS): 2.3 kg | 5 lb
Gross weight (2PCS): 2.6 kg | 5.7 lb
Packaging dimensions: 315 x 165 x 110 mm | 12.4 in x 6.5 in x 4.3 in

Product code / Technical specifications

• Product code: SCC02.
• Sold in pair; designed for manual lifting only.
• Main material: lightweight aluminium (body).
• Surface protection: vulcanized rubber gripping pads on jaws.
• Operation: finger-trigger jaw opening, automatic lock, load-release mechanism.
• Application: manual handling and transport of sheet materials (glass, granite, marble, plywood, particleboard, etc.).
