Sheet lifting clamp SCC06

vertical

Note
Sold in pair

General

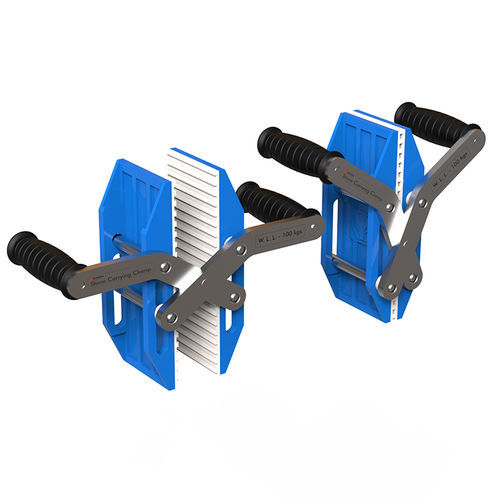

The Carry Clamp for Sheet Material is used in pairs to lift and transport panels safely and ergonomically. The clamp converts the weight of the sheet into clamping force; no additional tightening is required. A vulcanized rubber lining on the jaws protects the material surface during handling.

Specifications
Metric | Imperial
Grip range | 0 - 40 mm | 0 - 1.57"
Working load limit in pairs | 200 kg | 441 lbs
Net weight | 7 kg | 15.4 lbs
Gross weight | 7.4 kg | 16.3 lbs
Packaging dimensions | L.480xW.160xH.300 mm | 18.9"x6.3"x11.8"

Technical features

• Product Code: SCC06
• Sold in pair
• Designed to be used in pairs; clamp uses sheet weight to provide clamping force
• Grip range: 0 - 40 mm (0 - 1.57")
• Working load limit (in pairs): 200 kg (441 lbs)
• Net weight: 7 kg (15.4 lbs)
• Gross weight: 7.4 kg (16.3 lbs)
• Packaging dimensions: L.480 x W.160 x H.300 mm (18.9" x 6.3" x 11.8")
• Vulcanized rubber lining on jaws to prevent surface damage
