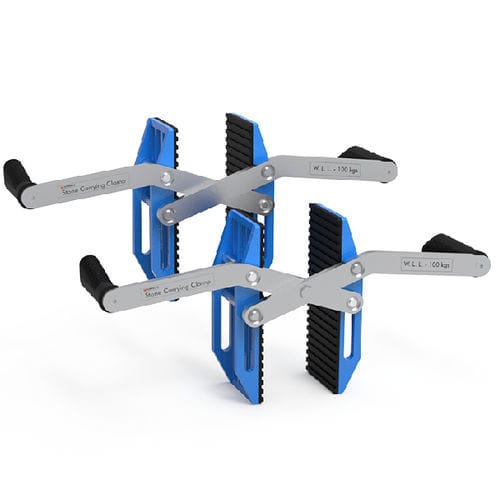

Sheet metal lifting clamp SCC05

stonefor wooden panelsglass plate

Product overview The Carry Clamp SCC05 is designed for safe, ergonomic lifting and horizontal transport of sheet materials and panels. Used in pairs, the clamp uses a self-locking mechanism that leverages the weight of the material to secure the grip. Vulcanized rubber-lined jaws protect finished surfaces from scratches and chipping. Note: sold in pairs for balanced handling.

Key features

• Self-locking grip – Weight-activated locking for secure hold without manual adjustment.
• Ergonomic handling – Intended for two-person lifting to improve weight distribution and reduce strain.
• Scratch-free clamping – Vulcanized rubber lining protects stone, glass, wood and metal surfaces.
• Versatile grip range – Accommodates sheet thicknesses from 50 to 100 mm (2"–4").
• Lightweight and compact – Easy to transport and store; practical for worksite use.

Specifications Metric | Imperial
Grip range: 50 - 100 mm | 2" - 4"
Working load limit: 200 kg (per pair) | 441 lbs
Net weight: 8.3 kg (per pair) | 18 lbs
Gross weight: 9 kg | 20 lbs
Packaging dimensions: L 580 × W 180 × H 310 mm | 22.8" × 7" × 12.2"

Applications & benefits

• Improves productivity – Speeds up safe handling and transport of panels on site or in workshop.
• Protects surfaces – Rubber-lined jaws prevent damage to finished panels.
• Reduces physical strain – Ergonomic design supports safer manual handling.
• Multipurpose – Suitable for stone, glass, wood and metal panels.

Technical data

• Model: SCC05
• Grip range: 50 - 100 mm (2" - 4")
• Working load limit (WLL): 200 kg per pair
• Net weight: 8.3 kg per pair
• Gross weight: 9 kg
• Packaging dimensions: L 580 × W 180 × H 310 mm
• Jaw lining: Vulcanized rubber for scratch-free clamping
• Operation: Self-locking mechanism using material weight
• Sold: In pairs
