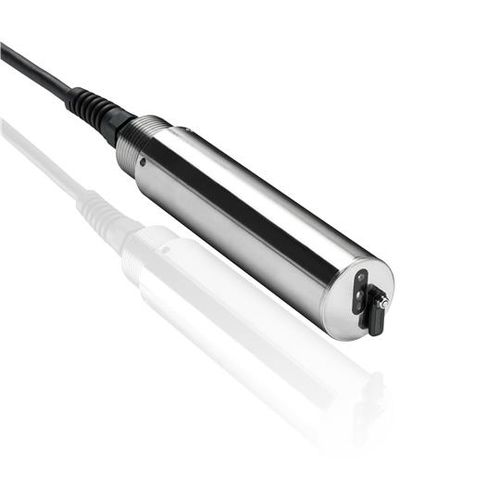

Turbidity sensor Aztec ATS430

The simplest way to remain compliant with turbidity and TSS level monitoring Certified by MCERTS for measuring turbidity and featuring ABB’s innovative adaptive TSS calibration technology, the ATS430 can be counted on to provide improved control of turbidity and suspended solids throughout its operational life. Its service-free design, plus features including in-situ cleaning, simplified calibration, predictive maintenance diagnostics and EZLink connectivity, enables it to offer the lowest cost of ownership of any device on the market. The ATS430 is a compact, yet extremely robust turbidity sensor capable of measuring turbidity and total suspended solids (TSS) concentrations up to 4000 NTU or 100,000 mg/l. With a choice of hermetically-sealed stainless steel or titanium versions, each featuring scratch-resistant sapphire optical windows, the ATS430 provides a versatile solution for use in benign environments through to those featuring aggressive or corrosive media. Supplied fully factory-calibrated ready for use straight out of the box. no servicing for the lifetime of the sensor in-situ cleaning advanced predictive maintenance diagnostics EZLink automatic sensor recognition and set-up adaptive TSS calibration feature for improved process control simplified calibration flexible installation certified performance Range Turbidity: 0 to 4000 NTU Suspended solids: 0 to 100,000 mg/l SiO2 (100 g/l) Accuracy Turbidity: <±2 % measured value Suspended solids: dependent on sample Method 90° scattered light measurement in accordance with DIN/EN 27027/ISO 7027 Repeatability <1 % Limit of detection 0.006 NTU Response time T90 < 30 s with filtering disabled
