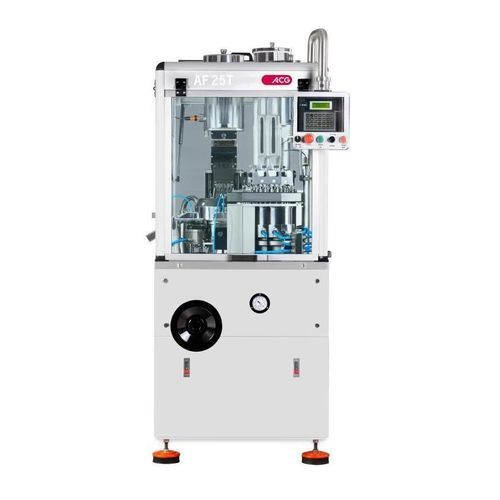

Fully-automatic filling machine AF 25T

capsulefor tabletspowder

About the AF 25T
ACG AF 25T is a compact, fully automatic capsule filling machine designed for pilot-scale and small-batch production. It delivers consistent fill weight control and supports multiple filling formats, making it suitable for R&D and early-stage manufacturing.

Applications

• Fills powders, pellets, tablets, micro-tablets, capsules, soft gels and combinations into hard capsules

Features & Benefits

• Precise slug-dosing principle: Improves yield of high-quality capsules within tight weight variation limits while reducing powder wastage.
• Partial filling capability (up to 25 mg) for capsule sizes 000 to 5: Enables filling of capsule-based dry powder inhalation (cDPI) formulations with minimal excipients and low-dose API without excess carriers.
• Swift and simple capsule size & product changeover: Minimizes downtime for higher productivity during pilot runs and development iterations.
• Multi-format filling: Supports powders, pellets, tablets, micro-tablets and soft gels, offering flexibility across formulation types.
• Compact, fully automatic design: Optimized for pilot-scale, labs and small-batch GMP environments.

Technical specifications

• Stations: 8
• Capsule sizes: 000 - 5
• Partial fill capacity: up to 25 mg
• Maximum speed (reference): 25,000 capsules/hr
