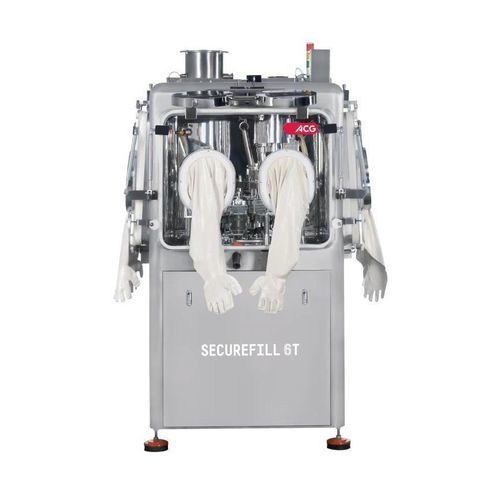

Automatic filling machine SECUREFILL 6T

capsulefor tabletscapsule

About the SECUREFILL 6T
The SECUREFILL 6T is a contained capsule filling machine engineered for safe handling of highly potent active pharmaceutical ingredients (HPAPIs). Designed for small production batches, it delivers containment suitable for OEB up to level 4 while maintaining hygienic stainless steel SS316L construction.

Applications

• Contained filling of pellets
• Contained filling of tablets and micro-tablets
• Contained filling of capsules and soft gels
• Combinations of the above in capsules

Features & Benefits

• Monoblock SS316L structure with HEPA filtration, rapid transfer port (RTP) and glove ports maintained under negative pressure — ensures full containment and prevents operator exposure (OEL 1–10 µg/m³).
• Provision for contained charging and discharging — enables integrated containment for upstream and downstream operations.
• Wet-in-place system for wetting suspended particles in the pharma zone — reduces formulation residues and facilitates cleaning.
• Certified for HPAPI and cytotoxic drugs up to OEB level 4 — supports production of oncology, hormonal and other high-potency products.
• Can integrate with check-weighers, metal detectors, capsule sorters and de-dusters under containment conditions — ensures complete in-line quality control.

Also available in
SECUREFILL 12T — 12,000 capsules/hr
SECUREFILL 25T — 25,000 capsules/hr
SECUREFILL 40T — 40,000 capsules/hr

Technical specifications

• Capsule size: 00 – 5
• Maximum speed: 6,000 capsules/hr
• OEL (working range): 1–10 µg/m³
• Occupational Exposure Band (OEB): up to level 4
• Designed for contained filling of pellets, tablets, micro-tablets, capsules and soft gels
