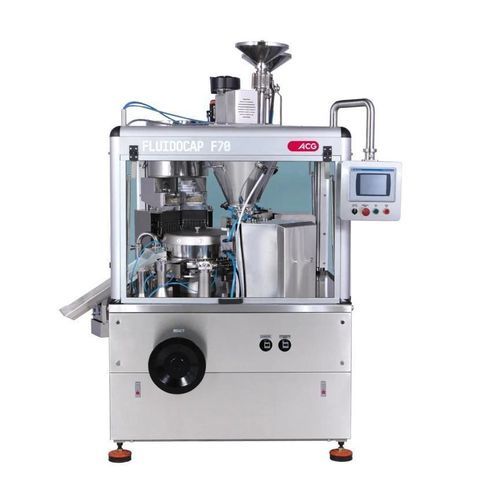

Fully-automatic filling machine FLUIDOCAP F70

capsulefor liquidscapsule

About the FLUIDOCAP F70
The FLUIDOCAP F70 is a fully automatic liquid filling machine engineered for dosing liquids into two-piece hard capsules (e.g. ACGcaps™ GL / HL). It supports production rates from approximately 20,000 to 55,000 capsules per hour and handles a wide range of formulations including free-flowing liquids, pastes, suspensions, thixotropic systems and hot-melts. Suitable for medium to large batch manufacturing.

Applications

• Liquid filling of two-piece hard capsules
• Filling capsules with liquid containing pellets, tablets or micro-tablets
• Filling capsules with soft gels and liquid–solid combinations
• Processing pastes, suspensions, thixotropic formulations and hot-melts

Key capabilities and intended use
The FLUIDOCAP F70 is intended for pharmaceutical, nutraceutical and contract-manufacturing environments producing medium to large batches of liquid-filled hard-capsule products. It supports oxygen-sensitive formulations when used with inerting and enables flexible product formats (liquid-only or liquid with solid inclusions). Designed for integration into production lines with precise process control to minimise waste.

Features & Benefits (from product table)

• No-capsule-no-fill sensors — minimises product waste
• Wide viscosity range handling — enables filling of pastes, hot-melts and thixotropic solutions
• Multi-format filling capability — liquids, pellets, tablets, micro-tablets, soft gels and combinations
• Built-in nitrogen/inert gas purging system — supports oxygen-sensitive formulations

Additional product notes
Output depends on capsule size, formulation and operating parameters; typical range 20,000–55,000 capsules/hour. Best suited for medium to large production batches. Compatible with free-flowing liquids, pastes, suspensions, thixotropic formulations and hot-melts. Options available for dosing modules, inerting and line integration.

Technical specifications

• Capsule size: 00–4
• Maximum speed: 55,000 capsules/hr
• Typical output range: 20,000–55,000 capsules/hr (dependent on capsule size and formulation)
• Supported formulations: free-flowing liquids, pastes, suspensions, thixotropic solutions, hot-melts
• Batch suitability: medium to large
• Primary functions: liquid filling of two-piece hard capsules; supports liquid filling with pellets, tablets, micro-tablets, soft gels and combinations
• Process support: built-in nitrogen/inert gas purging for oxygen-sensitive formulations
