LCD panel PC PC9101

TFT LCDresistive touch screenPCAP capacitive touch screen

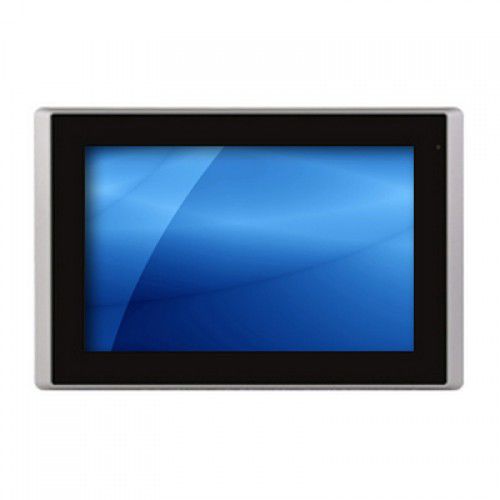

PC9101 is a fanless 10.1" 1280 x 800 LCD PC with resistive type touch screen, wide range working temperature, and Celeron N29301.83GHz CPU. The LCD panel is 10.1” with a maximum resolution of 1280 x 800, 350 nits brightness, 800:1 contrast ratio, displays 16.2 million colors, and mean time between failures at 50,000 hours. The graphical image quality will be superior and the display will be long-lasting. It contains a resistive type touch screen monitor with 80% light transmission and RS-232 interface. The option for a projected capacitive type touch screen is also available. The CPU is Bay Traill N2930 Quad-Core 1.83GHz, SoC chipset, and 4GB DDR3L 1600MHz memory, delivering high performance with immense storage. It includes one full size internal mini-PCIe slot. The connectors consist of 2 COM, USB 2.0, USB 3.0, 2 Gigabit Ethernet ports (RJ-45), 3-pin DC power input terminal, and 2-pin connector for power on/off button. With the front bezel built of aluminum die-casting and IP65 design, it will ensure durability and resistance to contaminants and liquids yet it will be lightweight. With IP65, it has complete protection from water, up to water projected by a nozzle against enclosure from any direction. The chassis is also of aluminum die-casting. Since it is fanless and built of aluminum, it will dissipate heat which prevents overheating. It will also protect from dust, oil, and other non-corrosive material, especially in a harsh working environment. With a wide range working temperature of 32°F to 122°F and storage temperature of 14°F to 122°F, it can withstand severe weathering.
