LCD panel PC PCH8120

PCAP capacitive touch screen5-wire resistive touch screen12.1"

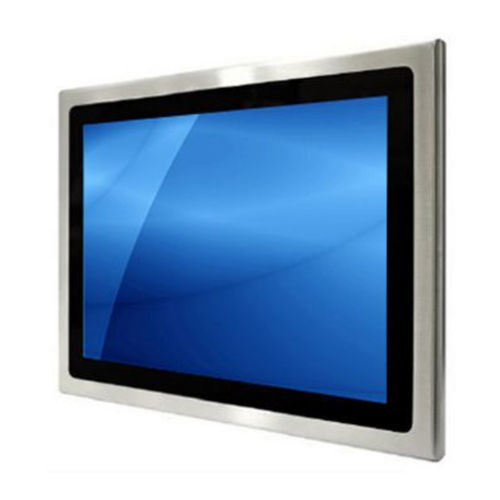

Stainless steel panel PC with a 12.1 inch 1024 x 768 industrial LCD monitor, Resistive type screen monitor, and an IP66/69K rated waterproof stainless steel enclosure. PCH8120 is constructed with SUS316 stainless steel, which has corrosion resistance properties that allow the monitor to be used in environments where acid or chemicals are present. Powered by the Intel Apollo Lake N3350 1.1GHz CPU, the PC system supports Integrated Intel HD Graphics, a 4GB DDR3L SO-DIMM memory, and a 128GB SSD. The I/O for the panel PC includes 1 x RS-232, 2 x USB, 1 x RJ45 GbE LAN, and 1 x AC input. All of the I/O ports are IP66 rated connectors. Features • Full IP66/69K rated rugged stainless steel enclosure • 12.1 inch 1024 x 768 industrial LCD monitor • 500-nits high brightness, option for 1000-nits high brightness • 5-Wire Resistive touch screen, option for PCAP multi-touch • Intel Apollo Lake Celeron N3350 1.14GHz CPU • 4GB DDR3L SO-DIMM memory & 128GB SSD • 1 x LAN, 2 x USB, 1 x COM, 1 x Power (IP66 connectors) • VESA (100 x 100mm) mounting holes • 110/240V AC power input, option for 12VDC power input Order Information PCH8120: 12.1 inch 1024 x 768 industrial LCD monitor, Intel Apollo Lake N3350 CPU, 4GB RAM, 128GB SSD, Resistive touch screen, 1 x LAN + 2 x USB + 1 x COM, full IP66/69K rated enclosure, 110/240VAC power input. Option for 1000-nit high brightness sunlight-readable display, PCAP type multi-touch screen monitor, and 12V DC power input.
