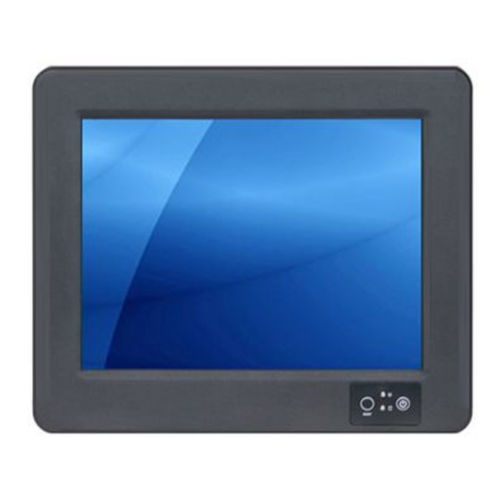

LCD panel PC PCM8012

touch screen1024 x 768Intel® Celeron N2930

Military-grade panel PC with a 12.1 inch 1024 x 768 resistive type touch screen monitor powered by the Intel Celeron N2930 1.83GHz CPU. The panel PC supports 2 x LAN + 2 x USB + 1 x RS-232 (D38999), a fully IP67 rated rugged enclosure, and MIL-STD-461F/810G military testing compliance. Features: • Fully IP67 rated rugged enclosure • 12.1 inch 1024 x 768 industrial LCD panel • 5-wire resistive type touch screen with EMI mesh filter • 400-nits LCD panel, option for 1000-nits high brightness • Intel Celeron N2930 1.83GHz embedded system • 2 x LAN + 2 x USB + 1 x RS-232 (D38999 connectors) • MIL-STD-810G -10°C to 60°C wide range working temperature • Wide range 9~36V DC power input with EMI filter 12.1" 1024 x 768 military-grade panel PC with Intel Celeron N2930 1.83GHz CPU, Resistive type touch screen, and MIL-STD-461F/810G military testing compliance. Construction Fully IP67 rated rugged enclosure LCD Panel Size: 12.1 inch Max. Resolution: 1024 x 768 Brightness (cd/m²): 400-nits, option for 1000-nits high brightness Contrast Ratio (typ.): 700:1 Viewing Angle: -88 ~88(H); -70~70(V) Active Area: 245.76(H) x 184.32(V) Colors: 16.2M (8 bits/color) LCD Enchancement Optical bonding Option for optical bonding + EMI filter + UV protection Touch Screen 5-wire resistive type touch screen with EMI mesh filter Front Panel Controls Power ON/OFF & Reset button LED indicators for power and storage System CPU: Intel Celeron N2930 1.83GHz Memory: DDR3 SO-DIMM 4GB, Max.8GB Graphic: Integrated Intel HD Graphics Ethernet: Intel WG82574LGbE Audio: Realtek ALC886 HD Audio Codec Chipset: Fintek F81866
