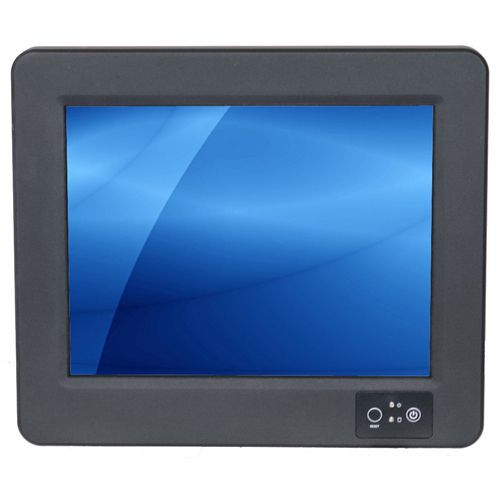

LCD panel PC PCM8010

LED backlight5-wire resistive touch screen10.4"

PCM8010 is a fanless military-grade panel PC powered by Celeron Bay Trail N2930 1.83GHz. The front IP65 rated bezel is complemented with MIL-STD-810G and a wide range of operating temperatures. Featured with integrated Intel HD Graphics, 16.2 million colors, and an option for a 1000-nit high brightness display, the 10.4 inches LED monitor displays brilliant image qualities. Along with the Fintek F81866 chipset, SATA II HDD 500GB or mSATA SSD 64/128GB drive bay, LAN, COM, and two USB ports, PCM8010 will meet the functionality and practicality of requirements in demanding environments. The 10.4 inch LCD panel displays a maximum resolution of 1024 x 768. The standard configuration is 350-nit brightness but an option for 1000-nit high brightness is available. The contrast ratio is 1200:1 with a viewing angle at 176’(H)/ 176’(V). The backlight is LED and with 16.2 million colors. The 5-wire resistive type touch screen monitor is highly resistive to liquids and contaminants, easily activated with fingers, stylus or gloved hands, and consumes a low amount of power. The CPU is Celeron Bay Trail N2930 1.83GHz with a memory slot of DDR3 SO-DIMM 4GB (maximum 8GB), Fintek F81866 chipset, Integrated Intel HD Graphics, Intel WG82574L GbE Ethernet, and audio of Realtek ALC886 HD Audio Codec. The drive bay consists of SATA II HDD 500GB or mSATA SSD 64/128GB. The power supply is of a wide range of 9~36V DC power input. The connectors include two USB 2.0, COM port (RS-232), two RJ45 GbE LAN, and 9~36V DC input. PCM8010’s dimension is 11.02”(W) x 9.45”(H), creating an easy installation for VESA mount or an option for 30°~90° Swivel bracket.
