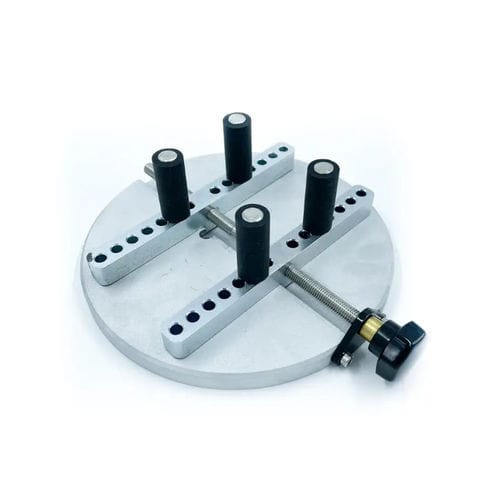

Manual clamping system 4- Studs

smallquicksmooth

The 4-stud clamping is an agile and economical gripping system. Thanks to its two adjustment bars, it allows botlles of all sizes and shape to be kept in a centered position. There are two types of studs: the smooth studs and the screw studs. Several heights of studs are available for your clamps: 40 mm, 50 mm, 60 mm, 70 mm, 80 mm and 90 mm. Description The smooth studs They allow a quick change of position, ideal in case of small successive series with very different diameters. The screw studs Are intended for medium and large series and offer better stability at high torques. Technical informations Gripping Mini - Maxi - ∅ 7 to 185 mm Diameter if the tray - 180 mm Clutter out of everything L x lg - 210 mm x 180 mm Useable on compression bench - Yes Useable on compression bench - No Height of studs - 40 mm, 50mm, 60 mm, 70mm, 80mm, 90mm
