Torque measuring system

direct-contactfor industrial applicationscontrol

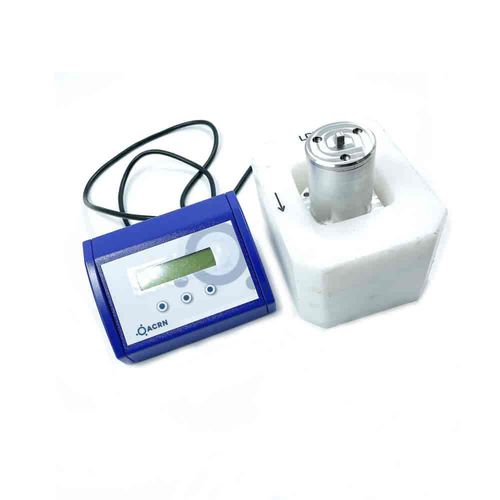

Simply measure the torque under industrial screwing machines Measuring the unscrewing torque of packaged sample caps can reach limitations. Checking the tightening torque, verified directly under the screwdriver, is useful in the following cases: Know the real value of the static torque applied to the products to be screwed Check the repeatability of the screwing machines Provide additional information to diagnose the various problems of your packaged products (sealing, screwing, etc..) Check that the unscrewing torque problems are not related to the machine Collect preventive maintenance and process control data Description System description Measurement console XA-m Embedded sensor with a capacity from 0.5 to 25 N.m Upper standard drive with female Base with hole drilling Central body of the sensor casing Possible adaptations for the top drive of the srewing machine: -Other dimension of squares -End caps -Dummy caps Possible adaptations fot the plinth: Customized base for adaptation of buckets or specific dimensions. Options and accessories Printer Extended wires Additional sensors Dummy caps Drive adapters Technical informations Type of sensor - Self-stabilizing reinforced static torque sensor Capacity (N.m) - 0.5/ 1/ 3/ 5/ 10/ 25 Units - N.m / lbf.inch / N.cm / Kgf.cm Dimensions - See outline below Weight (sensor kit) - 700g Sampling rate - 5 000 Hz Accuracy - 0.1 % FS Resolution - 0.001 N.m Autodiagnostic - Sensor offset indicator Safe overload - 150 % Standard drive - Female square ¼’’ Power supply - 220 V / 50-60 Hz
