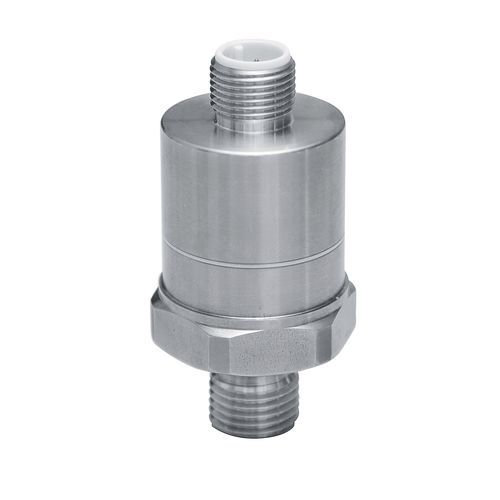

Relative pressure transmitter PRECONT® PU4SE
4-20 mAHARTModbus

relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Output
4-20 mA, HART, Modbus, IO-Link, 2-wire
Fluid
for gas, for liquids
Protection level
rugged, rugged, IP69K
Other characteristics
precision, fast response time
Pressure range

Max.: 100 bar
(1,450.38 psi)

Min.: 0 bar
(0 psi)

Long-term stability

0.2 %

Process temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

The device Precont® PU4SE is an electronic pressure transmitter / pressure switch for monitoring, control and continuous measurement of pressures. A high variety of versions of process connections and electronic types allows the use for a wide range of applications, also for demanding measuring requirements. Due to its high accuracy and the digital adjustability by HART®, RS485 Modbus®-RTU or IO-Link® the device Precont® PU4SE can be suited to a wide variety of applications. The robust design and the high-quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether the lowest temperatures when used outdoors, extreme shock and vibration stress or aggressive media. A captive laser marking of the type label ensures the identifiability throughout the entire lifetime of the device. Obviously is the optional marking of a measurement point designation resp. TAG, a customer label or of a neutral type label, of course also per laser marking. A LABS- resp. silicone-free version, a factory calibration with calibration certificate and a customer specific configuration resp. preset is also optionally available like a material test certificate EN10204 3.1 or a factory certifications for drink water suitability. Customer specific special versions can be realized short-term on request, e.g. special designs for the process connection or other process materials.
