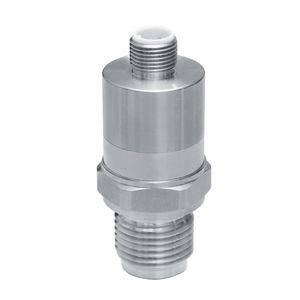

Relative pressure transmitter PRECONT® KT

membrane4-20 mA0-10 V

The device Precont® KT is an electronic pressure transmitter for monitoring, control as well as continuous measurement of pressures in gases, vapors, liquids and dusts. Due to the device construction with measuring ranges from 0 bar to 600 bar (gauge), measuring ranges from 1 bar to 40 bar (absolute), measuring spans from 250 mbar to 600 bar, process temperatures from –40°C to +135°C, environmental temperatures from –40°C to +85°C, process materials Al2O3-ceramic / CrNi-steel as well as the availability of industrial standard process connections like thread connection ISO 228-1 (EN 837 manometer), thread connection ISO 228-1 (inner thread), thread connection ISO 228-1 (EN 1179-2 E), thread connection ISO 228-1 (inner bore) the device is especially suitable for the use for machinery and plant engineering, air-conditioning and refrigeration plant engineering, hydraulic and pneumatic systems, process industry, environmental technology and facility and building automation. The pressure transmitter Precont® KT is suitable for cost sensitive as well as demanding measuring requirements. The certification acc. to ATEX II 1 G Ex ia IIB/IIC Tx Ga allows the use in explosion hazardous areas. The robust design and the high-quality workmanship turns the device into a very high quality product, which even the most adverse environmental conditions cannot affect, whether the lowest temperatures when used outdoors, extreme shock and vibration stress or aggressive media. A captive laser marking of the type label ensures the identifiability throughout the entire lifetime of the device.
