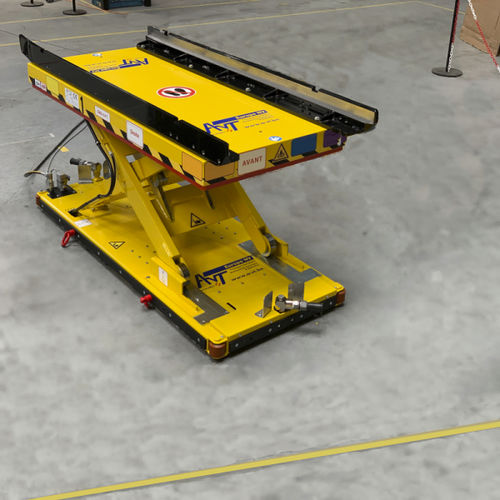

Electric self-propelled trailer

6-axlefor heavy loadshydraulic

_ TAILOR MADE MACHINE: All below features can be amended according to your need THIS APPLICATION: Compact maintenance handling transporter on air cushions _ Compact custom made frame: 1900 x 800 x 245 mm _ Payload 4400kg [Typically: 3000 to 500 000 kg or more] _ Interface with floor: Air cushions [wheels / rail wheels / air cushions / combination] _ Lifting height: 665 mm [more if needed] _ Interface with load: Specific rails to handle a trolley which accommodate the payload [It could be anything else] _ Movement: Omnidirectional (drive in all directions) [Omnidirectional, rotation on spot, diagonal, etc. - More option available] _ Energy / autonomy: external air supply _ Safety devices: yes, according to regulation [Others and fail/safe safety features: if needed] _ Remote controlled _ Specific: Compact to be delivered on site on a pallet, welds inspection, compliance requirements, etc. _ Easily accessible compartments for servicing and/or maintenance _ CE Certification, other continents if needed _ Market: Nuclear _ Application: moving mechanical parts for maintenance purposes _ Environment: Standard workshop [Possible to have specific requirements like: ATEX, pyrotechnics, clean rooms, withstand fire, radiations, etc., Automatic battery switch: Since one battery is in use, a second pack is getting loaded. When battery level is too low, the AGV gets the other pack on board automatically] _ Potential Markets Railways, Aeronautics, Energy, Production and assembly, Metallurgy (steel and cables), Paper and cardboard, Logistics, Machining, Defence, Automotive, Industries, Plastics, Non-food, food, etc.
