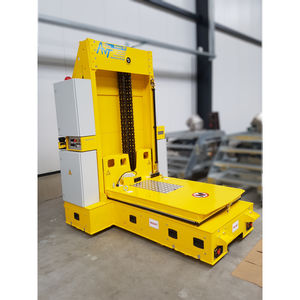

Handling AGV

transferloadingunloading

_ TAILOR MADE MACHINE: All below features can be amended according to your need THIS APPLICATION: Supply automatically a part (to be milled) to a milling machine _ Custom made frame: 2800 x 1300 x 2300 mm _ Typical load around 80 kg [Typically: 3000 to 500 000 kg or more] _ Interface with floor: Air Cushions and Wheels [wheels / rail wheels / air cushions / combination] _ Lifting capacity: 50 mm [more if needed] _ Interface with the payload: Active specific pallet (with actuators) _ Movement: Omnidirectional (drive in all directions) [Omnidirectional, rotation on spot, diagonal, etc. - More option available] _ Energy / autonomy: Battery pack (capacity) sized to your project, and embedded air blower _ Safety: Safety scanner and others [fail/safe safety features: if needed] _ Automatic solution: AGV _ Guidance mode: According to your need _ Specific: High positioning accuracy, etc. _ Easily accessible compartments for servicing and/or maintenance _ CE Certification, other continents _ Market: Industry _ Application: Supply a heavy part to be milled to a milling machine with accuracy _ Environment: Standard workshop [Possible to have specific requirements like: ATEX, pyrotechnics, clean rooms, withstand fire, radiations, etc., Automatic battery switch: Since one battery is in use, a second pack is getting loaded. When battery level is too low, the AGV gets the other pack on board automatically] _ Potential Markets Railways, Aeronautics, Energy, Production and assembly, Metallurgy (steel and cables), Paper and cardboard, Logistics, Machining, Defence, Automotive, Industries, Plastics, Non-food, food, etc.
