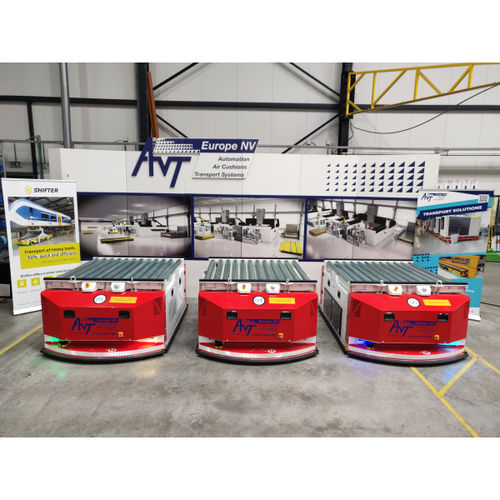

Handling AGV

transporttransferloading

_ TAILOR MADE MACHINE (automotive): All below features can be amended according to your need. THIS APPLICATION: Transfer pallet from box and stack line to wrapping then labelling unit to storage _ Custom made frame: 2300 X 1460 x 850 mm _ Typical payload around 2000 kg [Typically: 3000 to 500 000 kg or more] _ Interface with floor: Wheels [wheels / rail wheels / air cushions / combination] _ Lifting capacity: no [yes, if needed] _ Interface with the payload: Motorized rolls _ Movement: Differential (drive in almost all directions) [More option available] _ Energy / autonomy: Battery pack (capacity) sized to your project _ Safety: Safety scanner, bumpers and others [fail/safe safety features: if needed] _ Automatic solution: AGV _ Guidance mode: According to your need _ Specific: very sharp turns, narrow passages, simplified manual control, several sizes of pallets. _ Easily accessible compartments for servicing and/or maintenance _ CE Certification, other continents _ Market: Chemical manufacturing _ Application: A fleet of AGV to transfer pallets from box and stack line to wrapping machine then labelling unit to storage _ Environment: Standard workshop [Possible to have specific requirements like: ATEX, pyrotechnics, clean rooms, withstand fire, radiations, etc., Automatic battery switch: Since one battery is in use, a second pack is getting loaded. When battery level is too low, the AGV gets the other pack on board automatically] _ Potential Markets Automotive, Railways, Aeronautics, Energy, Production and assembly, Metallurgy (steel and cables), Paper and cardboard, Logistics, Machining, Defence, Automotive, Industries, Plastics, Non-food, food, etc
