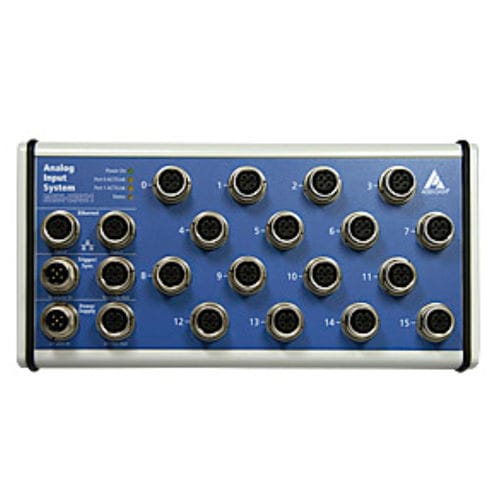

Analog input module MSX-E3021

digitalEthernetsafety

The Ethernet analog input system MSX-E3021 has 16 analog differential inputs, 16-bit, voltage or current inputs. 4 channels can be acquired simultaneously with 100 kHz. The system was developed for long-term measurement in the harsh industrial environment and thus has an extended memory of 4 GB. It has a robust normed metal housing with the degree of protection IP 65 and an extended temperature range from -40°C to +85°C. The ARM®9 32-bit processor allows the calculation of the acquired values. The Development Mode allows to customise applications individually. Through synchro connection, several MSX-E systems can be cascaed and synchronised with one another in the µs range. Features 24 V digital trigger input ARM®9 32-bit processor 64 MB onboard SDRAM for storing data Robust standardized metal housing Power Save Mode: Reduced power consumption when no acquisition runs Analog inputs 16 diff. inputs, 16-bit, 5-pin M12 female connector Sampling frequency max. 100 kHz, up to 4 simultaneous channels Input ranges: ± 5 V, ± 10 V (16-bit) | 0-5 V, 0-10 V (15-bit) Gain PGA x1, x2, x10, x20, x100, x200, x1000, x2000 software-programmable, signals up to +/-5mV (16-bit) are possible Current inputs optional Safety features Status LEDs for fast error diagnostics Optical isolation Input filters Overvoltage protection ± 40 V Internal temperature monitoring
