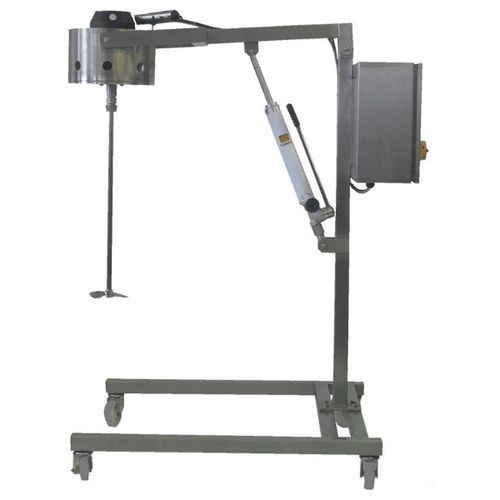

Propeller mixer

mobilebatchsolid/liquid

Overview
Stainless steel propeller mixers for efficient liquid blending and powder dispersion in pharmaceutical, food and cosmetic production.

Product details

• Optimised for Low to Medium Viscosity Products
  Ideal for blending liquids and dispersing free-flowing powders without excessive shear or aeration.
• 316L Grade Polished Wetted Parts
  All product contact surfaces are manufactured from 316L stainless steel, ensuring maximum hygiene and eliminating the risk of contamination.
• Durable Stainless Steel Lifting Frame
  Built with 304 grade stainless steel for long service life, corrosion resistance and easy sterilisation.
• Variable Speed Drive
  Operating range 420 to 1,400 rpm as standard, providing consistent and controlled mixing. Standard operating speed indicated as 1,400 rpm; optional variable-speed configurations available.
• Wide Viscosity Handling Capability
  Suitable for products with viscosities of up to 2,000 cPs (mPas), depending on motor selection and batch size.
• Flexible Batch Sizes
  Designed for batch volumes from 20 L upwards, compatible with vessels up to 800 mm base diameter.
• Multiple Motor Options Available

  • 0.37 kW motor - suitable for batch sizes up to 100 L
  • 0.75 kW motor - suitable for batch sizes up to 300 L
• Mobile Configuration Available
  Can be supplied with wheels, allowing easy repositioning within production areas.

Applications

• Liquid-to-liquid blending
• Oil-to-oil mixing
• Dispersing free-flowing powders into liquids
• General agitation of low to medium viscosity formulations

Technical specifications (table)
Model: Propeller Mixer
Operating rpm: 420 - 1400

Notes
Designed with pharmaceutical-grade materials and hygienic construction for use in regulated production environments.
