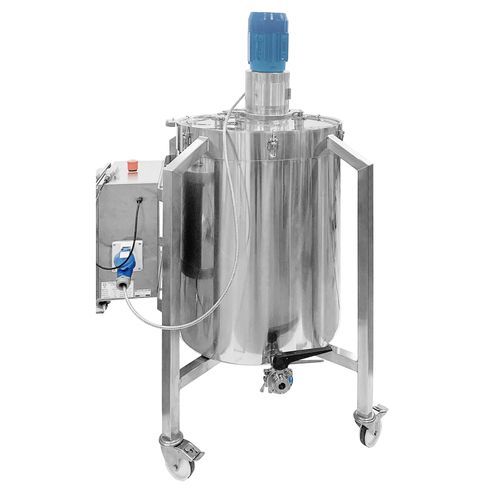

Double-walled vessel

mobilecone-bottomstainless steel

Overview
Precision engineered vessels for sauces, cosmetics, creams and pharmaceutical formulations. Manufactured in 316L (pharmaceutical grade) or 304 stainless steel. Capacities from 5 L to 2,500 L for laboratory batches through full-scale production.

Engineered for Reliable, Efficient Mixing

• Customised mixing solutions matched to product viscosity and process requirements
• High shear mixer
• Propeller mixer
• Agitator systems (gate, spiral and paddle options)
• Multiple power and speed configurations

Exceptional Hygiene Standards

• Pit- and crevice-free internal finishing
• Outstanding 0.4 μm Ra internal surface finish
• Compatible with alcohol-based disinfectants for rapid cleaning
• Designed for CIP, SIP and manual cleaning

Full Material Traceability

• Material grade certification
• Surface finish certification
• TSE documentation available

Customisation Options

• Choice of flat, sloped, conical or dished bottoms
• Additional manways, ports and process connections
• Heated, cooled or insulated jackets (double‑jacket options)
• Mobile frames and trolley mounting for manoeuvrability

Service & Maintenance
Crevice‑free internal surfaces and high‑quality surface finishing support efficient CIP, SIP and manual cleaning processes, reducing contamination risk and simplifying maintenance.

Applications

• Sauces and condiments
• Colour cosmetics and dermatological creams
• Pharmaceutical formulations and regulated production environments

Technical characteristics / specifications

• Capacity: 5 L to 2,500 L
• Material: 316L (pharmaceutical grade) or 304 stainless steel
• Internal surface finish: up to 0.4 μm Ra
• Hygienic design: pit- and crevice-free internal finishing
• Mixing options: high shear, propeller, agitator systems; multiple power & speed configurations
• Bottom options: flat, sloped, conical, dished
• Process features: additional manways, ports and process connections
• Thermal options: heated, cooled or insulated jackets available
• Mobility: mobile frames and trolley mounts available
• Cleaning: supports CIP, SIP and manual cleaning; compatible with alcohol-based disinfectants
• Compliance & documentation: material grade, surface finish and TSE documentation available
