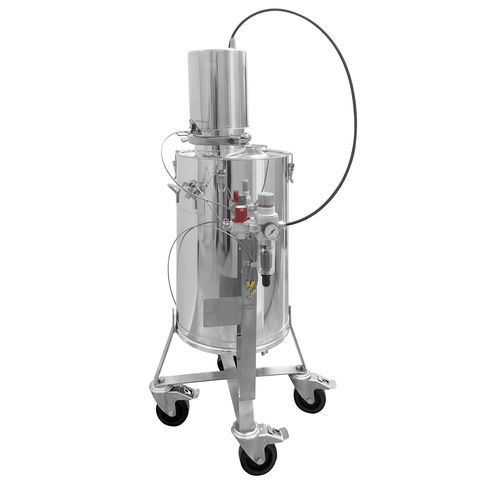

Liquid blending system

chemical

Overview
Safe blending solutions for ethanol‑rich, volatile and hazardous formulations. ATEX‑certified vessels engineered to minimise ignition risk while providing stable, high‑performance mixing for volatile formulations. All required technical files are lodged with an approved body to ensure full ATEX compliance and production security.

Reliable & Compliant for Hazardous Environments
All required technical files are lodged with an approved body, ensuring full ATEX compliance and production security. These containers are designed to minimise ignition risk while providing stable, high‑performance mixing for volatile formulations.

Full Material Traceability

• Available upon request for international pharmaceutical and regulatory compliance:
• Material Grade Certification
• Surface Finish Certification
• TSE Certification

Customisation Options

• Tailor your ATEX rated vessel to your exact process requirements:
• Flat, sloped, conical or dished bottoms
• Additional ports or manways
• Heated, cooled or insulated jackets
• Mobile frames for safe, easy movement

Engineered for Safety, Built for Performance
ATEX certified construction with stainless steel contact surfaces and robust air‑driven mixing systems designed for long‑term reliability in hazardous area operations.

Your Choice of Stainless Steel
Manufactured in 316L pharmaceutical‑grade stainless steel or 304 stainless steel. Available in capacities from 25 L to 400 L.

Designed to Meet Stringent Safety Requirements
Certified CAT IIB 2DGc T4 (135°C) and supplied with an air motor mixer suitable for Category 2 and 3 (Zone 1 and Zone 2) hazardous areas. Rated for vapour mixtures requiring ignition energy groups A or B and maximum surface temperature T4 (≥135°C).

Service & Maintenance
Crevice‑free internal surfaces and high‑quality surface finishing support CIP, SIP and manual cleaning processes for easy cleaning and sterilisation.

Why Choose Adelphi

• Global experience in design and manufacture of compliance‑critical mixing equipment.
• End‑to‑end project management from design to delivery, including process‑specific customisation.
• Bespoke solutions and British manufacturing standards ensuring technical integrity and compliance.

Technical specifications

• Certification: CAT IIB 2DGc T4 (135°C)
• Hazardous area suitability: Zone 1 & Zone 2 (Air motor mixer suitable for Category 2 and 3)
• Maximum surface temperature rating: T4 (≥135°C)
• Materials: 316L pharmaceutical‑grade stainless steel or 304 stainless steel
• Capacities: 25 L to 400 L
• Mixing: air‑driven mixers (air motor mixers) for ATEX areas
• Design options: flat, sloped, conical or dished bottoms; additional ports or manways; heated, cooled or insulated jackets; mobile frames
• Cleaning: crevice‑free internal surfaces; compatible with CIP and SIP
• Traceability: material grade, surface finish and TSE certification available on request
