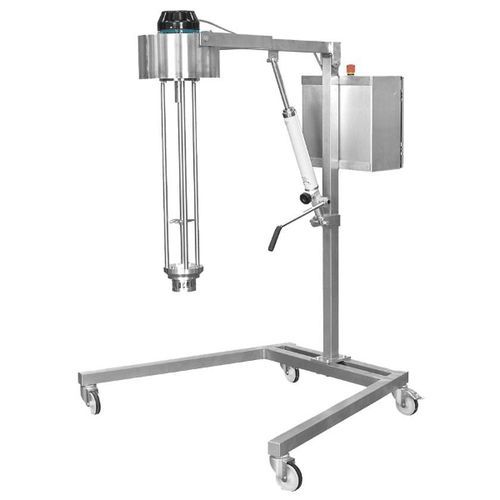

Rotor-stator mixer

mobilebatchfor liquids

Overview
Compact stainless-steel high-shear mixer engineered for fast, hygienic emulsification, dispersion and homogenisation of liquids and semi-viscous formulations in regulated production environments (pharmaceutical, food, cosmetic). Designed for water-to-oil emulsions and flexible batch operation.

Product details

• Optimised for water-to-oil emulsions
  Delivers rapid, consistent mixing to form stable, light emulsions with reduced processing time.
• Pharmaceutical-grade wetted parts
  All product-contact components are 316L stainless steel to minimise contamination risk and support GMP requirements.
• 304 stainless-steel lifting frame
  Main frame manufactured in 304 stainless steel for structural strength, corrosion resistance and straightforward sterilisation.
• High-speed operation (standard)
  Operational range listed as 840–2,800 rpm to provide high shear rates for efficient droplet size reduction.
• Wide viscosity handling
  Suitable for formulations up to 2,000 cP (mPas).
• Flexible batch sizes
  Designed for typical batch volumes from 20 L to 100 L depending on product viscosity and configuration.
• Multiple motor options

  • 1.1 kW motor: suitable for lower-viscosity applications and smaller effective batch volumes.
  • 2.2 kW motor: higher power option for larger batches or increased viscosity.
• Mobile configuration
  Unit supplied with wheels for easy repositioning within production areas.

Additional information (FAQ content)

• Primary functions: rapid emulsification, dispersion and homogenisation of liquids and semi-viscous products; particularly effective for forming stable water-to-oil emulsions used in creams, lotions and gels.
• Performance outcomes: fast dispersion, fine droplet-size distribution and reduced processing times, supporting consistent batch-to-batch quality.
• Materials: all wetted parts manufactured from 316L stainless steel (pharmaceutical grade); main frame in 304 stainless steel.
• Operational speed note: product documentation lists an operating range of 840–2,800 rpm; an additional reference to 2,900 rpm appears in FAQ material—both values are recorded in the technical information.
• Viscosity capability: suitable for products up to 2,000 cP (mPas), covering a wide range of cosmetic, pharmaceutical and food formulations.

Technical specifications (table)
Model: High Shear Mixer
Operating rpm: 840 - 2,800

Characteristics / Technical specifications

• Model name: High Shear Mixer
• Operating speed (stated ranges): 840–2,800 rpm (table/product details); 2,900 rpm referenced in FAQ
• Wetted (product-contact) materials: 316L stainless steel (pharmaceutical grade)
• Frame material: 304 stainless steel lifting frame
• Viscosity capability: up to 2,000 cP (mPas)
• Batch size (typical): 20 L to 100 L (dependent on viscosity and configuration)
• Motor options: 1.1 kW (suitable for lower-viscosity/lower-volume use); 2.2 kW (for larger batches or higher viscosity)
• Configuration: mobile unit supplied with wheels
• Applications: emulsification, dispersion, homogenisation for pharmaceutical, food and cosmetic production
