Dynamic mixer

mobileverticalbatch

Product overview

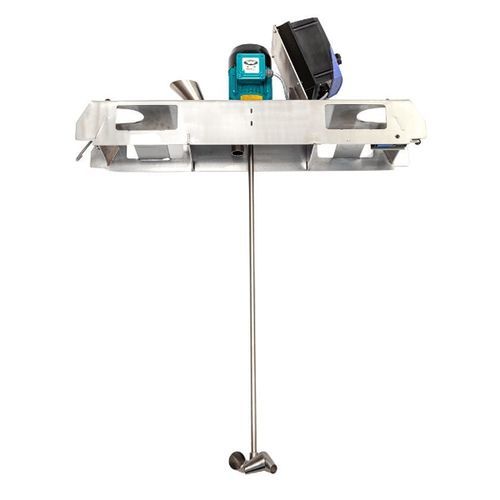

The IBC Mixer is specifically engineered for efficient, hygienic mixing directly within Intermediate Bulk Containers. Ideal for liquid-to-liquid and oil-to-oil blending and for dissolving free-flowing powders into liquids without transferring product to a separate vessel.

Key features

• Designed Specifically For IBC Mixing
  Engineered for direct use on standard 1000L IBCs with a 150mm screw cap and metal outer frame.
• 316L Pharmaceutical Grade Wetted Parts
  Wetted parts in 316L stainless steel to guarantee product purity and prevent contamination in regulated applications.
• 304 Grade Stainless Steel Construction
  Structural parts in 304 stainless steel provide strength, durability and long service life.
• Exceptional Surface Finish
  Product contact parts finished to 0.5 micrometers Ra or better to eliminate pits and crevices where bacteria could accumulate.
• Variable Speed Mixing Control
  Adjustable speed range from 420 rpm to 1400 rpm to suit different products and viscosities.
• Suitable For A Range Of Viscosities
  Page content includes suitability statements of up to 200 cPs (mPa·s) and elsewhere indicates suitability up to 700 cP (mPas) for low- to medium-viscosity applications.
• Secure & Safe Mounting System
  Locates firmly to the IBC using kill-switched toggle clamps for enhanced operator safety.
• Fully Factory Wired & Tested
  Supplied ready to use, reducing installation time and commissioning delays.
• Durable, Reusable & Easy To Sterilise
  Designed for repeated cleaning and long-term use to improve total cost of ownership.
• Optional Process Enhancements
  Available additions include a product addition chute and a high-efficiency vortex mixer impellor.
• Mobility Option
  Can be supplied with wheels for easy movement around the production facility.
• Full Material Traceability
  Material grade, surface finish and TSE certification available upon request.

Service & Maintenance
Removable shaft and impellor allow fast disassembly for thorough sterilisation.

Frequently asked details

• What is an IBC mixer used for?
  Mixing directly inside Intermediate Bulk Containers for liquid-to-liquid, oil-to-oil and dissolving powders into liquids without transfer to another vessel.
• What size IBC is this mixer designed for?
  Engineered for standard 1000-litre IBCs fitted with a 150mm screw cap and metal outer cage.
• Maximum product viscosity?
  Page content states suitability up to 700 cP (mPas); another product statement lists up to 200 cPs (mPa·s).
• Variable speed control?
  Yes — 420 rpm to 1400 rpm.
• Is the unit supplied ready to use?
  Yes — the unit is fully factory wired and tested for quick installation and minimal commissioning time.

Caractéristiques / Spécifications techniques

• Intended container: standard 1000 L IBC with 150 mm screw cap and metal outer frame
• Wetted parts: 316L pharmaceutical grade stainless steel
• Construction: 304 grade stainless steel (frame/structure)
• Surface finish (product contact parts): 0.5 µm Ra or better
• Variable speed range: 420 rpm – 1400 rpm
• Viscosity handling: page includes statements of up to 200 cPs (mPa·s) and up to 700 cP (mPas)
• Mounting: kill-switched toggle clamps for secure attachment
• Options: product addition chute; high-efficiency vortex mixer impellor; wheeled mobility option
• Supply state: fully factory wired and tested
• Maintenance: removable shaft and impellor for rapid disassembly and sterilisation
• Traceability: material grade, surface finish and TSE certification available
