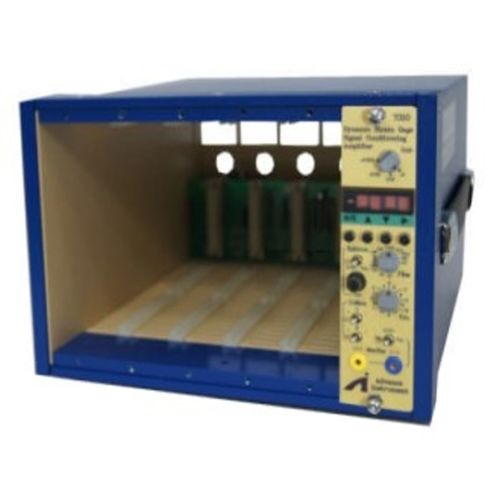

Signal amplifier 7310

conditioningadjustableprogrammable gain

7310 Signal Conditioning System is designed with and incorporates all the features necessary for dynamic precise conditioning of strain gage and transducer inputs in the most severe operating environments. 7310 Signal Conditioning and amplifier’s low- level signals to high-level outputs for multiple channels can be simultaneously and dynamically recorded and displayed on external devices. Applications: • - Dynamic Material Test • - Strain/Stress Analysis • - Dynamic Material Elasticity Testing • - SHPB Signal Conditioning • - Load Cell Signal Conditioning • - Foil Strain Gage Signal Conditioning • - Piezo Resistive Sensor Signal Conditioning • - Semiconductor Strain Gage Signal Conditioning Features • - Diferential signal amplifier with high bandwidth up to 800 kHz • - Gain Accuracy ±0.1% • - Fully adjustable calibrated programmable gain from 1 to 9,999 • - 4 digital LED display for gain, filter, excitation setting or output voltage • - Accepts foil type strain gage, piezo resistive, potentiometers, etc. • - Programmable or Selectable bridge Constant- voltage excitation: 0 to 15V • - Plug-in amplifier • - Automatic bridge balance, with EEROM to preserve balance without power • - Built-in with all bridge completion including 120 or 1000 and 350 Ω dummies. • - Built-in with shunt calibration circuits • - Built-in with optically isolated shunt calibration relays • - Built-in with programmable or selectable four-pole Bessel low-pass filter • - 10 Selectable cutoff frequencies of 10 Hz to 100kHz and wide-band • - Front-panel monitoring: Vin, Vout and Excitation • - User interface Full compatibility 2310B
