Fully Digital, Extremely Precise Infrared Thermometer, 200 to 3000°C

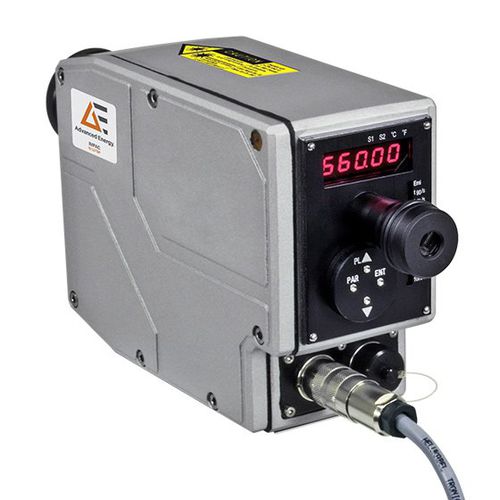

Advanced Energy's Impac IS 12-TSP and IGA 12-TSP are fully digital, extremely precise transfer standard pyrometers for exact inspection of calibration sources.
•Temperature Ranges: Between 200 and 3000°C
•Analog Output: 0 to 20 mA or 4 to 20 mA, DC, switchable, load max. 500 Ohm
•Extremely fast exposure time
•Long-term stability
•Thermostatically-controlled detectors
Overview
The Impac® IS 12-TSP and IGA 12-TSP are extremely precise transfer standard pyrometers that can inspect calibration sources. The detectors in TS pyrometers are thermostatically controlled to achieve high precision. This means measurements are, to a large extent, independent of surrounding temperature variations and a resolution of 0.01°C can be achieved.
The IS 12-TSP or IGA 12-TSP are available in several temperature ranges between 200 and 3000°C. You can also select from various spectral ranges. This enables use with calibration sources that check pyrometers with silicon or indium gallium arsenide detectors.
Benefits
•Accurately inspect your calibration sources
•Use with calibration sources with which pyrometers with silicon or indium gallium arsenide detectors can be checked
•Achieve high precision
•Ensure that temperature values, as stipulated by national institutes, can be transferred to your own calibration sources to guarantee traceability to the ITS90 international temperature scale
•Guarantee adherence to high technical specifications
Features
•Temperature ranges between 200 and 3000°C
•Resolution of only 0.01°C
•Built-in, five-digit LED display
•Digital interface
•Focusable optics
