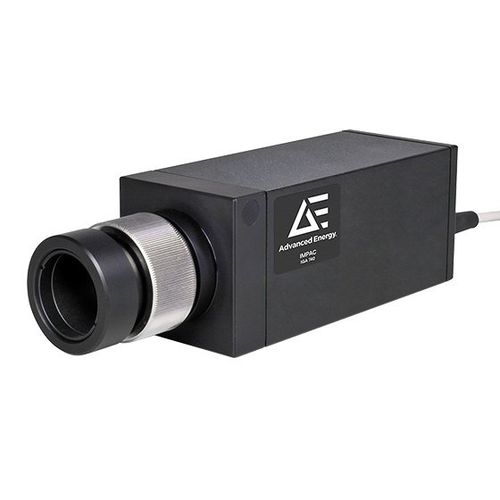

Metal pyrometer 740 Series

digitalUSBstationary

The Impac High Speed 740 pyrometers offer the extremely fast 6 μs response time and are ideal for high-speed applications. IGA 740: The compact IGA 740 is available with either focusable or macro optics. Use focusable optics featuring a measuring distance between 450 and 3000 mm to achieve small spot sizes. And, depending on the temperature range, macro optics provide a spot size of only 0.7 mm or 1 mm at fixed distance. IGA 740-LO: The IGA 740-LO uses an optical fiber and optical head for transmitting radiation. The fiber and optical head are unaffected by electromagnetic interferences (e.g. induction). They can be used in very high ambient temperatures up to 260°C without cooling. Features Extremely fast response time of only 6 μs High quality optics for detection of small measuring objects Built-in LED targeting light for easy alignment to the measuring object; IGA 740 also available with view finder Laser protection filter (optional) to shield the laser wavelength for laser applications Benefits Measure fast-moving objects or rapid temperature changes Easily align with targeting light Shield the laser wavelength Detect small measuring objects via high-quality optics
