Digital pyrometer Impac IN 600

with LED displayUSBstationary

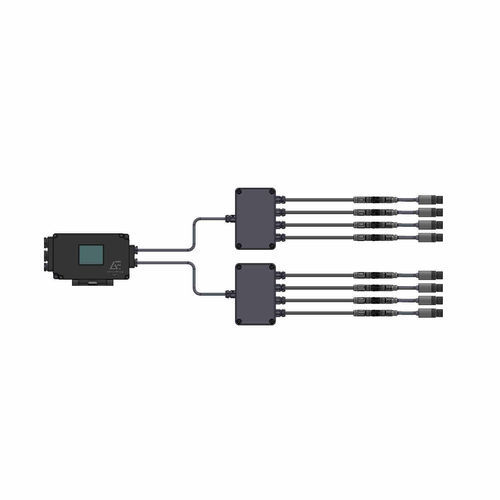

Digital, Modular Infrared Thermometers for Non-Contact Temperature Measurement Advanced Energy's Impac 600 series is a digital pyrometer series that provides a highly customizable design with easy installation and maintenance. The IN 600 is a digital pyrometer with exchangable sensor heads for non-contact temperature measurement of non-metallic or coated metallic surfaces. Suitable for measuring temperature ranges between -40 and 700°C High flexbility due to modular design Three different optics available with field of view 2:1, 10:1, or 20:1 The Impac® 600 series is a digital, modular pyrometer series that provides a highly customizable design with easy installation and maintenance. The IN 600 is a long wavelength digital pyrometer best suited for non-contact temperature measurement on non-metallic or coated metallic objects. The modular concept allows for various combinations of system components: converter box, sensor heads, multi-sensor box. The standard configuration includes an electronic converter box and a removable sensor head to allow for easy exchange. Each converter box can connect up to two sensor heads or up to two optional multi-sensor boxes that connect up to four sensor heads each. Benefits Install in harsh industrial environments Use in ambient temperature up to 80°C without cooling Connect and exchange sensor heads easily Use up to 8 sensor heads (for 8 measuring points) with one converter box Features Removable sensor heads for easy exchange Modular concept for high flexibility Optional multi-sensor box Three optics with distance ratio up to 20:1
