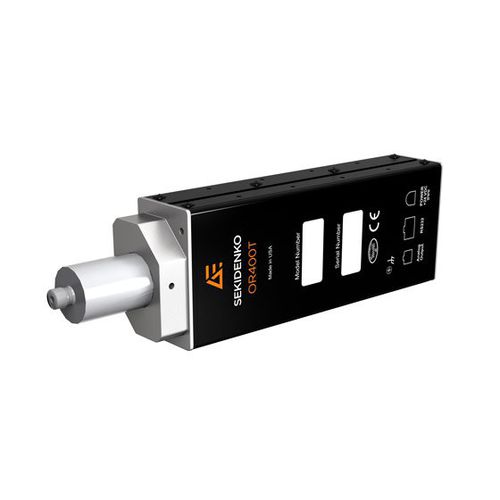

Semiconductor pyrometer Sekidenko OR400T

without displaycompactwith fiber optic

The Sekidenko OR400T is a single-channel, non-contact optical fiber temperature pyrometer that measures infrared energy being emitted from an object and converts it into usable temperature data (degrees °F or °C). The Sekidenko OR400T can be configured in a variety of measurement wavelengths based on target materials, process temperature ranges, and working distances from 3.9 in (100 mm) to 118.1 in (3000 mm). Available temperature ranges are: 122°F (50°C) to 2912°F (1600°C). Features In-situ, non-contact temperature measurement employing lensed optical sensors or sapphire light pipe sensors Industry-leading temperature and read rates Highly flexible, module-based platform architecture Full I/O and external trigger/synchronization suite Multi-channel capability and read rates up to 2 kHz Benefits Improves temperature-measurement accuracy for critical processes Enhances repeatability and minimizes variation Increases productivity, yield, and throughput Increases stability and reliability across multiple chambers and substrate materials Customizes to meet unique functional and mechanical requirements
