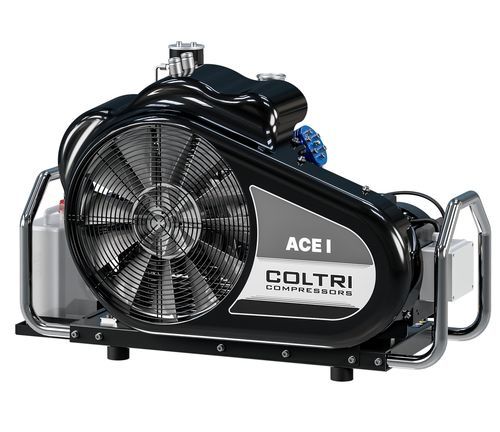

Compressor with booster ACE I

pistonbreathing airnitrogen

Imagine having a compressor capable of great performance and endowed with extraordinary solidity. What would all this be without absolute simplicity in managing it? We believe that innovation is for this: to make everything simpler. Monobloc in aluminum, Gooseneck in forged steel with forced lubrication on 2nd and 3rd stage cylinders by gear pump Oil filtration. Oversized interstage cooling pipes Double final separator Without maxifilter filter system Forged aluminum connecting rods Main roller bearings Roller connecting rod bearings 2nd stage cylinder in aluminum with hard nicasil coating 2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating 3rd stage cylinder in special treated steel. Stainless steel intake and exhaust valves Interstage cooling pipes in stainless steel Separator after the 2nd and 3rd stage Safety valves after each stage Oil level sensor The Maxifilter purification system enables reliable treatment of breathing air and technical gases according to DIN EN 12021¹ when using original filter cartridges. Placed after the last compressor separator and before the pressure maintenance valve, it has the separator after the 2nd and 3rd stage to create a first, fundamental barrier against humidity. The filtering capacity with inlet air at 20 ° C and 200bar is 620 m³. Electric motor One of the fundamental parts of the compressor: the motor transfers the motion to the pumping unit through the belt. The 4 to 5 three-phase electric motor is available on this model, 5 kW.
