Reciprocating piston compressor booster station Booster Indy III

reciprocatingpistoncompressed air

Overview
Medium-pressure 3-stage booster designed for industrial and professional applications requiring compression up to 40 bar. Engineered for easy maintenance and continuous operation with corrosion-resistant materials and forced lubrication.

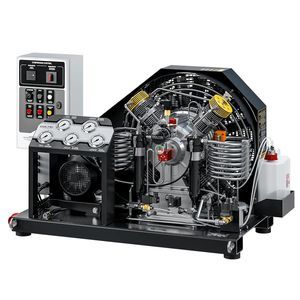

Pumping unit

• 3-stage medium-pressure pumping unit (40 bar)
• Aluminum monoblock construction
• Forced lubrication by low-pressure gear pump
• Suction filter: 10 µm
• Die-cast aluminum cylinders with Nicasil barrel coating
• Final safety valve
• Pipes, fittings and nuts in AISI 316 stainless steel
• Outlet temperature ≈ 15 °C above cooling air temperature
• Forged aluminum connecting rods
• Forged steel crankshaft
• Stainless steel stage valves
• Roller bearings for intensive duty

Electric motor
Three-phase electric motor available: 7.5 kW. Motion is transmitted to the pumping unit via a V-belt; tilting motor carrier plate ensures constant belt tension for maintenance and alignment.

Electrical cabinet

• Electronic pressure switch: stops at final pressure and restarts at set minimum
• ON/OFF switch with motor protection
• Transformer
• Timer for automatic condensate drain
• Integrated no-load startup (automatic discharge at shutdown)
• Condensate collection tank: 5 L (usable ~3 L) with silencer
• Interstage pressure gauges for monitoring each compression stage and valve tightness

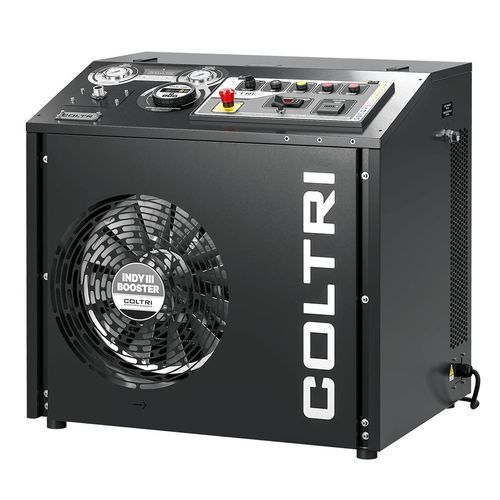

Frame
Silenced cabin chassis built for easy maintenance. External oil level and drain, control console with interstage gauges, internal temperature indicator, presence and phase-sequence alarm, oil shortage alarm, run/stop and manual condensate drain controls. Steel frame with scratch-resistant powder coating, Black RAL 9005.

Standard equipment

• Oil pump with pressure gauge
• Pressure holding valve
• Condensate separation system
• Automatic condensate drain
• Automatic shutdown and automatic restart
• Electronic pressure switch
• Frame color: Black RAL 9005

Technical specifications

• Type: Medium-pressure 3-stage booster
• Max pressure (nominal): 40 bar
• Pumping unit: 3-stage aluminum monoblock, Nicasil-coated cylinders
• Lubrication: Forced, low-pressure gear pump
• Suction filter: 10 µm
• Valves: Stainless steel stage valves
• Piping/fittings: AISI 316 stainless steel
• Connecting rods: Forged aluminum; crankshaft: forged steel
• Bearings: Roller bearings for intensive work
• Outlet temperature: approx. +15 °C vs. cooling air
• Electric motor option: 7.5 kW, three-phase
• Condensate tank: 5 L (usable ~3 L) with silencer
• Controls: Electronic pressure switch, interstage gauges, motor protection, condensate timer, no-load startup
• Frame finish: Steel with Black RAL 9005 powder coating
