Steam condenser PSSCT

cooledstainless steelpure

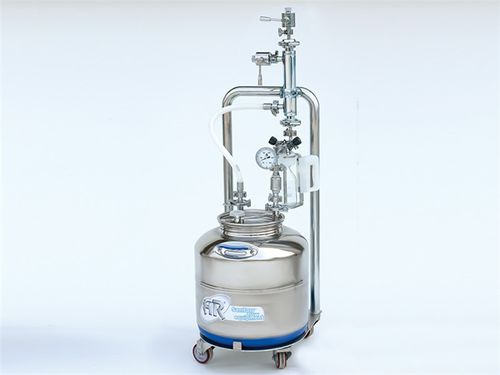

PS-SC Pure Steam Sample Condenser This PS-SC trolley mounted is designed to allow Clean Steam (CS) and Water For Injection (WFI) samples to be taken quickly and easly whilst mantaining a sterile testing environment. This trolley is ideal to be connect at the sampling point and can be operated with either mains or chilled water as the cooling medium. Availability of aseptic sample valve allow fine control of sample flow during testing The PS-SC can be sterilized in situ-on-line, thus ensuring continuity of samples regardless of testing frequency, ideal for fluids in pharmaceutical and purity systems applications. Installation Where steam is the sample medium, a valve (1) excluded from supply, suitable for continuous steam duty must be installed adjacent to steam manifold. First of all the isolation valve on main steam (1)( or on the use point ) should be connected with the valve on the top of heat exchanger 2)( tube side ) by the first flexible silicone hose clamped included in the supply; same operation for cooling medium that should be connected with the valve (4)on the lower body connection of heat exchanger ( shell side ) by the second flexible silicone hose clamped that which is supplied with the trolley unit. The medium to be condensed/cooled passes throught the tube side and typically a regulating valve (2) will be used to throttle the sample medium flow.
