Steam condenser PSSCP

cooledstainless steelpure

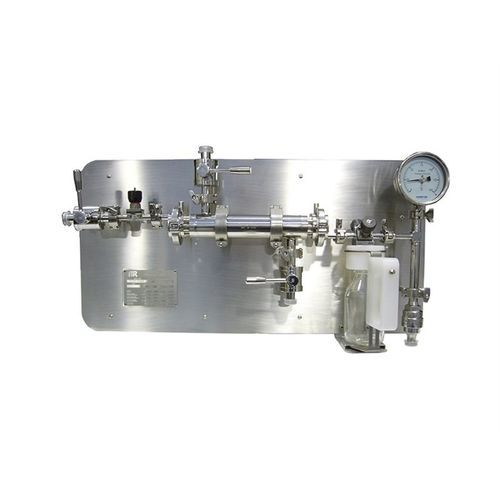

PS-SC Pure Steam Sample Condenser This PS-SC wall panel mounted is designed to allow Clean Steam (CS) and Water For Injection (WFI) samples to be taken quickly and easily whilst maintaining a sterile testing environment. This wall panel is ideal to be connect at the sampling point and can be operated with either mains or chilled water as the cooling medium. Availability of aseptic sample valve allow fine control of sample flow during testing The PS-SC can be sterilized in situ-on-line, thus ensuring continuity of samples regardless of testing frequency, ideal for fluids in pharmaceutical and purity systems applications. Where steam is the sample medium, a valve (1) excluded from supply, suitable for continuous steam duty must be installed adjacent to steam manifold. First of all the isolation valve on main steam (1) (or on the use point) should be connected with the valve on the top of heat exchanger (4) (tube side) by the first flexible silicone hose clamped not included in the supply; same operation for cooling medium that should be connected with the valve (5) on the lower body connection of heat exchanger (shell side) by the second flexible silicone hose clamped that which is not supplied with the wall panel unit. The medium to be condensed/cooled passes through the tube side and typically a regulating valve (2) will be used to throttle the sample medium flow.
