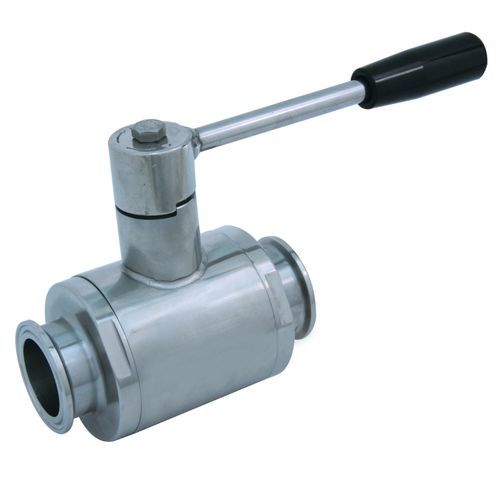

Ball valve SFAmanualflangeactuator
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Applications
- flange, actuator, glass
- Material
- polyethylene
- Number of channels
- 2-way
- Other characteristics
- ISO, DIN, drive, ATEX
- DN
Min.: 10 mm
(0.394 in)Max.: 100 mm
(3.937 in)- Pressure
Min.: 10 bar
(145 psi)Max.: 90 bar
(1,305.3 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 160 °C
(320 °F)
Description
Two-way ball valve Drive: ISO 5211 - DIN 3337 flange for actuator Connection: According to normative BS/OD (ASTM A270) for TUBE Flow: full and reduced Material: Aisi 316 Measure: from 1/2” to 4” Seals: virgin P.T.F.E. Operating temperature: -20°C +160°C Outer finish: polished On request: Antistatic device ATEX II 2 G-D T4 (Directive 94/9/EC) • KF connection • Seals made of: P.T.F.E. with glass P.T.F.E. with carbographite High-molecular weight polyethylene
