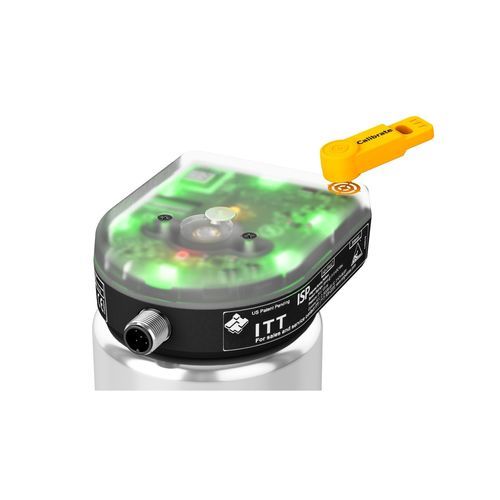

Linear position sensor ISP

non-contactmagneticresistance

The Integrated Sensing Platform (ISP) is the next generation of linear position sensing developed specifically for the toughest applications in the Biopharm and sanitary industries. This ultra-compact sensing module is the result of Engineered Valves partnering with a recognized leader in valve communications and control. Combining Engineered Valves knowledge of valve design with cutting edge valve position feedback and network communications, the ISP delivers industry leading sensing technology for EnviZion and Pure-Flo hygienic diaphragm valves. With an optional internal solenoid, commissioning the ISP couldn’t be easier. A simple mounting configuration, auto calibration and continuous sensing make the ISP quick and reliable to install, calibrate and operate. Constructed of highly durable, lightweight plastic with completely potted electronics, the ISP is well suited for typical industry washdowns. Ultra-compact design • Automatic calibration • Optional diagnostics functionality • 100% external calibration and solenoid override capabilities • Reliable position sensing with non-contact magnetic resistance sensors • Output/Bus Options: 2 wire, 3 wire, ASi, DeviceNet® • High visibility LED lights • Programmable open/closed LED color selections • High strength, corrosion resistant polycarbonate and PES construction • Potted electronics protect against moisture ingress (IP65, Nema 4X rated) • Integral solenoid valve option (Cv = 0.2) • 1/8” NPT air connections (inlet, actuator, exhaust) • M12 male quick connector standard • Observation window (clear window to view actuator stroking)
