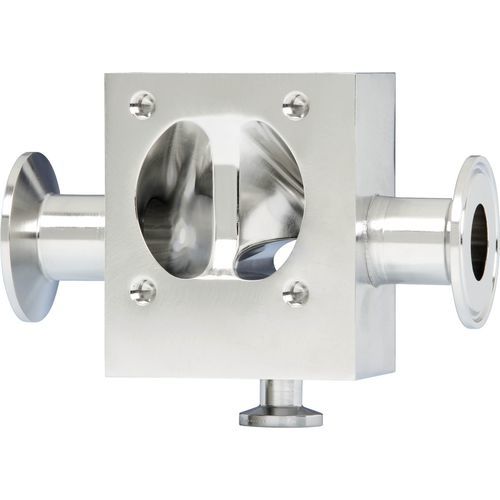

Pneumatic valve ISG

purgeprocessgauge

The ISG combines the functionality of the two most common process fabrications (Sterile Access (SA) and GMP) into one assembly, greatly reducing the deadlegs of conventional SA and GMP fabrications when a purge valve is required. This is achieved by providing the purge valve integral to the main body design. By simply rotating the assembly, one fabricated block body can provide three process fabrication orientations: Standard Sterile Access Port (SAP) and vertical GMP porting above and below the weir. The result is one integral valve assembly, which reduces contact surfaces and hold up volume, while minimizing dimensional envelope and increasing design flexibility. Process diversion, steam barrier/block sampling DN 177440, 1.4435 • Other materials available upon request Standard End Connections: • 14, 16, 18, 20 Gauge OD tubing • DIN/ISO • Tri-Clover Tri-Clamp® • Others available upon request Compatible with standard Pure-Flo topworks: See PFTOP for details on available manual bonnets or actuator.
