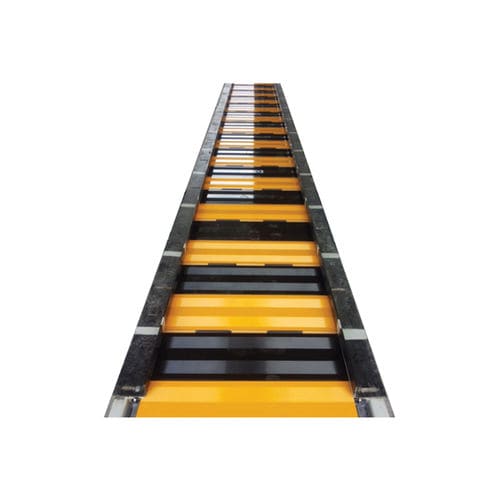

The new pit cover offers more comfort, practicability and safey in your workspace, while reducing significantly heating costs.
Installation is fast and the roller shutter does not need electrical connections of any kind.
The structure being manual allows you to close smartly your inspection pit, by keeping your workspace always in accordance with local safety regulations.
The aluminum blocks unroll by the container through a system of guides which makes easy and safe operation.
Length: Max 30 mt.
Width: min. 600 mm - max 1150 mm.
Blocking system: handle or motorized operation to lock the cover at any point of the pit.
Storage dimensions: 7 cm per linear meter.
Cover capacity: 500/1200/1600/3000/10000 kg per linear meter.
Cover capacity: 500/1200/1600/3000/10000 kg
Sliding profile: C-profile dimension 40 x 40 mm.
Metal slats: extruded anodized aluminum or galvanized steel.
Available versions: single drive up to 14 meters, tandem drive up to 30 mt.
Gangway: accessory provided with locking system.
Fall arrester: accessory available to facilitate the entry of the vehicle on the pit.
