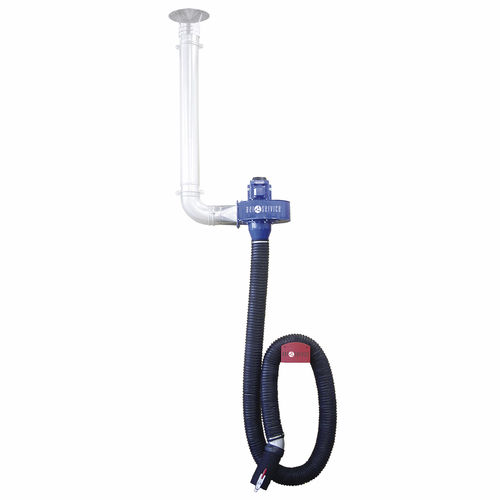

Wall extraction fan for the extraction of fumes and exhaust gases with temperatures up to 120° (single station)
Series “AP” extraction systems are a simple and economic solution to the problem of exhaust gas extraction in motorcycle, car and heavy service centres during engine testing while the vehicle is in park.
They are normally installed in acceptance and preparation areas of small workshops with limited space and where there is no need for systems with hose reels and or sliding rail ducts covering large areas.
These systems use fans in painted steel and impellers in steel with thick backward curved blades for the extraction of fumes and exhaust gas with temperatures up to 120°.
The device was designed to be used in the heavy vehicle sector with large concentrations and volumes of particulate flow, with large quantities discharged from the flue pipe (avoiding section changes and restricted flows).
The TGA rubber flexible hoses are connected to the suction nozzle of the extraction fan with fittings in galvanised sheet metal and the system is supplied with accessories (excluding the flue pipe) and oversized shelf for the flexible hose.
The recommended height for installation is 2.5 to 3 m.
