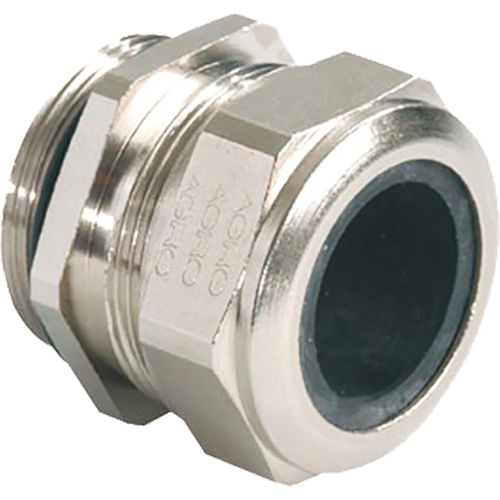

Nickel-plated brass cable gland 1060 seriesinsulatedIP68IP69
Add to favorites
Compare this product
Characteristics
- Material
- nickel-plated brass
- Protection level
- IP68, IP69, insulated
- Other characteristics
- threaded, strain relief
- Cable diameter
Min.: 6 mm
(0.24 in)Max.: 75 mm
(2.95 in)- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
One-piece sealing insert
overall length insulated
Material Nickel-plated brass
Seal TPE
O-ring NBR
Strain relief Version A acc. to EN 62444
Protection class IP 68 (up to 10 bar) / IP 69
Entry thread M20x1.5
Clamping range without insert min. 11.0 mm
Clamping range without insert max. 14.5 mm
Wrench size 24 mm
Dimension H 23 mm
Thread length L 6 mm
UL - clamping range 13.0-14.5 mm
Dispatch 50
