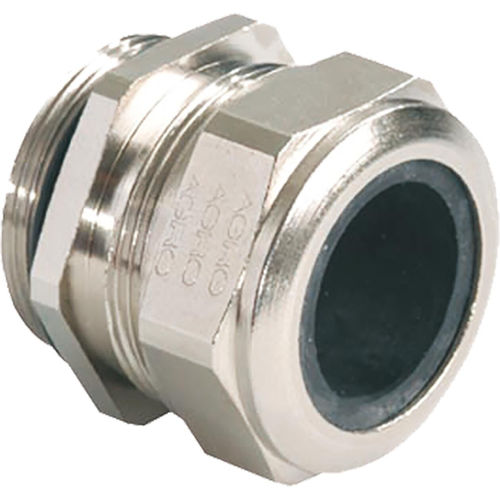

Nickel-plated brass cable gland 1060.13IP68IP69insulated
Add to favorites
Compare this product
Characteristics
- Material
- nickel-plated brass
- Protection level
- IP68, IP69, insulated
- Other characteristics
- threaded
- Cable diameter
Max.: 48 mm
(1.89 in)Min.: 9 mm
(0.35 in)- Operating temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
Two-piece sealing insert
overall length insulated
Material Nickel-plated brass
Seal TPE
O-ring NBR
Protection class IP 68 (up to 10 bar) / IP 69
Entry thread Pg 13
Clamping range with insert min. 8.0 mm
Clamping range with insert max. 11.0 mm
Clamping range without insert min. 11.0 mm
Clamping range without insert max. 14.5 mm
Wrench size 24 mm
Dimension H 23 mm
Thread length L 6.0 mm
UL - clamping range 10.6-11.0 mm
Dispatch 50
