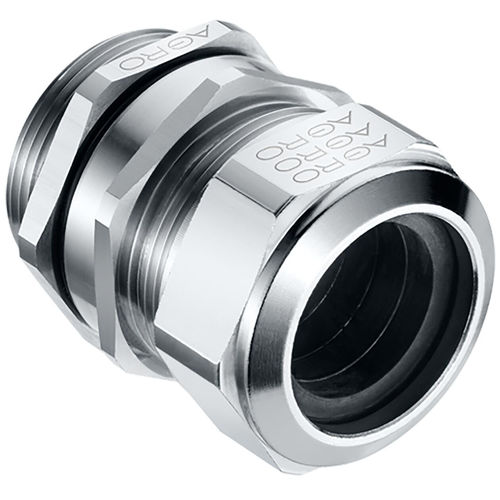

Nickel-plated brass cable gland 1084 seriesIP68IP69EMC-shielded
Add to favorites
Compare this product
Characteristics
- Material
- nickel-plated brass
- Protection level
- EMC-shielded, IP68, IP69
- Other characteristics
- threaded, strain relief
- Cable diameter
Max.: 85 mm
(3.35 in)Min.: 16 mm
(0.63 in)- Operating temperature
Max.: 100 °C
(212 °F)Min.: -60 °C
(-76 °F)
Description
Two-piece sealing insert
not overall length insulated
Material Nickel-plated brass
Seal TPE
O-ring NBR
Strain relief Version A acc. to EN 62444
Protection class IP 68 (up to 10 bar) / IP 69
Properties For high leakage currents, concentric 360° shield
contact ensure extremely low transfer resistance and
transfer impedance. Compact design
Entry thread M20x1.5
Clamping range with insert min. 8.0 mm
Clamping range with insert max. 11.0 mm
Clamping range without insert min. 11.0 mm
Clamping range without insert max. 15.0 mm
Cable shield diameter 13.4
Inner diameter 11.9 mm
Wrench size 24 mm
Dimension H 32 mm
Thread length L 6 mm
Dispatch 25
