Hydraulic press DSF-M2 series

stampingstraighteningframe

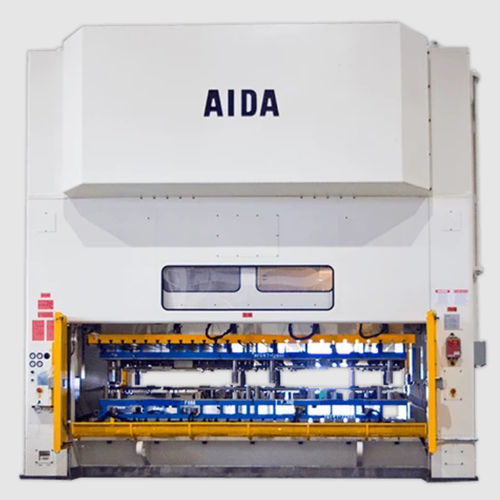

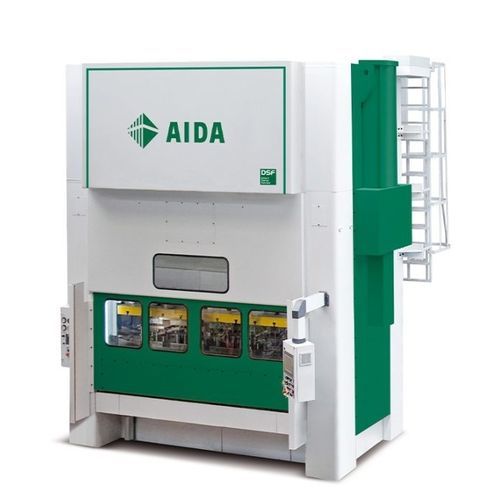

The AIDA DSF-M2, straightside tie-rod frame servo press manufactured in AIDA-America's 180,000 sq. ft. factory in Dayton, OH, is available from 315 through 1,250 tons capacity. Configurations include single or double reduction eccentric gear drive, 1/4" and 1/2" rating points, a wide variety of stroke length and die height choices as well as zero clearance roller-type slide guides (with bronze oil film guides as an option). The DSF-M2, like all AIDA Direct Drive Servo Formers (DSF Series), includes the AIDA designed and manufactured direct drive high torque, low RPM servo motor specifically designed for stamping press applications. Features 1. AIDA Servo Motor 2. - Wide Connections Spacing 3. - Bail Socket Connection Points 4. - Fastest acting HOLP in the industry (10 ms) 5. - Roller Guides 6. - Highly Rigid Frame For Servo Presses 315 Tons and Above CompactLogix PLC with Beckhoff motion controller for precise control. Locally designed and manufactured to meet North American customer needs. Handheld Type Precise control of your servo press at your fingertips. The answer to die set-up and try-out operations. Step Feed Mode, controlled by the handwheel, allows press operators to cycle the press at below 1 spm. Easy to view and operate 19" color touch screen HMI with full motion profile display. Powered by an Allen-Bradley 1900P display computer. Additional DSF-M2 Servo Press Control Features Fully programmable stroke length, velocity, and dwell for optimized production for every die 500 Job Recipe Storage Teach function minimizes the possibility of operator entry error Redundant dual encoders for additional safety 16 channel PLS for improved safety and productivi
