Electric press DSF-TE2 Series

formingstampinghigh-volume

Product type
Servo transfer presses — 2-point straight-side transfer presses. Press capacities range from 4000 kN to 12500 kN.

Description

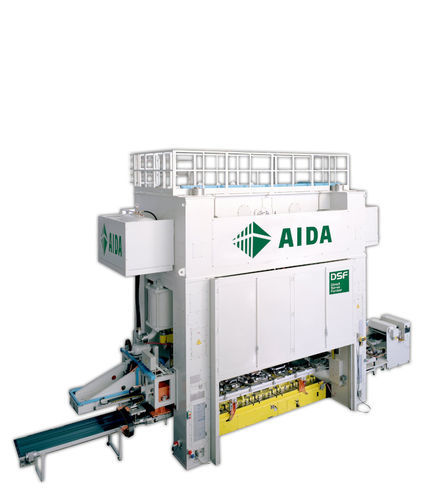

DSF-TE2 servo transfer presses provide extensive configurability to meet high-volume metalforming requirements. Built on a straight-side, tie-rod frame verified by FEM, frame deflection under load is controlled below 0.1 mm/m. Structural parts use quality-controlled steel plates, thermally stress-relieved after welding.
Equipped with AIDA proprietary high-torque, low-speed servo motors, the DSF-TE2 family allows programmable optimization of slide motion and stroke length according to part height. This enables precise impact-speed control, higher productivity, extended die life and reduced die maintenance.

Key features

• Fully programmable stroke length, velocity and dwell to match each die
• 500 job recipe storage for repeatable setup
• Teach function to reduce operator entry errors
• Redundant dual encoders for enhanced positional safety
• 16-channel PLS for improved safety and productivity
• Integrated tonnage monitor for process control
• Third-party integration with auxiliary equipment screens available on press OIT

Main Specifications (table)
Model | DSF-TE2-4000 | DSF-TE2-6300 | DSF-TE2-8000 | DSF-TE2-10000 | DSF-TE2-12500
Capacity (kN) | 4000 | 6300 | 8000 | 10000 | 12500
Slide Stroke (single reduction) (mm) | 350 | 400 | 400 | – | –
Slide Stroke (double reduction) (mm) | – | 450 | 500 | 600 | 600
Slide and bolster length (mm) | 3050-3650 | 3500-4250 | 4100 | 4700-5500 | 4700-5500
Slide and bolster width (mm) | 1500 | 1500-1700 | 1800 | 1800 | 1800
Side window opening (mm) | 1700 | 2200 | 2200 | 2360 | 2360
Shut height (mm) | 600-650-700-750 | 800-900-1000 | 800-900-1000 | 900-1000 | 900-1000
Slide adjustment (mm) | 250 | 300 | 300 | 300 | 300
Press speed in pendulum mode (single reduction) (min⁻¹) | 3÷90 | 3÷75 | 3÷71 | – | –
Press speed in pendulum mode (double reduction) (min⁻¹) | – | 3÷66 | 3÷60 | 3÷42 | 3÷42

Technical specifications

• Series: DSF-TE2 Series
• Press type: 2-point straight-side transfer servo presses
• Frame: straight-side, tie-rod construction; FEM-verified; deflection < 0.1 mm/m
• Structure material: quality-controlled steel plates, thermally stress-relieved after welding
• Drive: AIDA proprietary high-torque, low-speed servo motors (AIDA servo package)
• Programmability: stroke length, velocity and dwell fully programmable; 500 job recipes; teach function
• Safety & monitoring: redundant dual encoders; 16-channel PLS; integrated tonnage monitor
• Third-party integration: auxiliary equipment screens on press OIT
• Capacity range: 4000–12500 kN (models listed above)
• Slide stroke range: single reduction up to 400 mm; double reduction up to 600 mm (model dependent)
• Dimensional ranges: slide/bolster length 3050–5500 mm; width 1500–1800 mm; side window 1700–2360 mm; shut height options 600–1000 mm
• Press speeds: pendulum-mode ranges depend on model and reduction type (see table)
