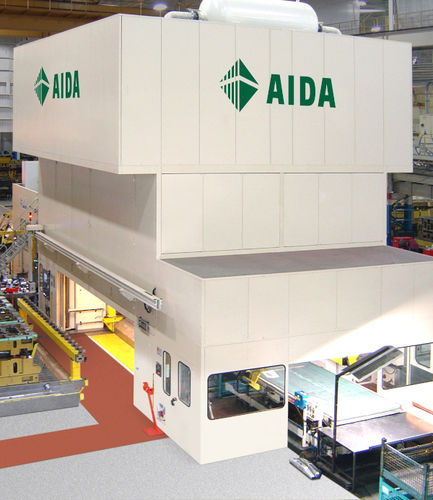

Mechanical press DSF-TE4 series

hydraulicmotorizedforming

DSF-TE4 servo transfer presses offer the highest level of customisation through multiple configuration. DSF-TE4 presses nowadays attract more and more customers who aim at boosting their productivity and increasing their competitive advantages in the global metalforming industry. DSF-TE4 are straightside frame, tie rod construction presses. Each frame component is designed and verified with FEM systems and manufactured to reduce deflection under load below 0,1 mm/m. All structural components are made of quality-controlled steel plates, thermally stress-relieved after welding. DSF-TE4 presses are equipped with AIDA’s proprietary, high torque, low speed servo motors designed specifically for presswork. The AIDA servo package enables users to optimize, in accordance with the part height, slide motion and stroke length, allowing for superior parts forming. The superior control of the impact speed on the material available for the AIDA servo package enables increased productivity, improved die life and reduced die maintenance. Fully programmable stroke length, velocity, and dwell for optimized production for every die 500 Job Recipe Storage Teach function minimizes the possibility of operator entry error Redundant dual encoders for additional safety 16 channel PLS for improved safety and productivity Integrated Tonnage Monitor Third-Party Integration, with auxiliary equipment screens shown on press OIT
