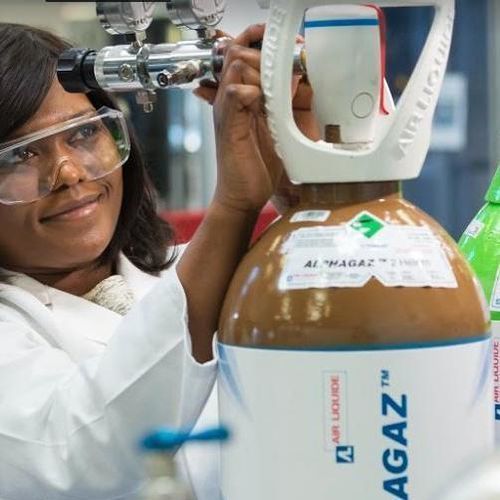

Industrial gas cylinder ALPHAGAZ™ 1

gasCO2cylindrical

Overview
ALPHAGAZ™ provides a gas solution designed for optimal analytical performance. CO2 suitable for cell culture and laboratory cooling.

Applications

• Cell culture
• Laboratory cooling

Specifications (excerpt)
Reference: P0211M14R0A001
Variation name: ALPHAGAZ 1 CO2 Bottle 14L
Pressure: NS
Packaging type & size: 14 L
Cap: Standard
Capacity: 10 kg
Relative density (gas): 1.52 (air=1)
Relative density (liquid 1 & 2): 0.82 (water=1)
Relative density (refrigerated): 1.03 (water=1)
Molecular weight: 44.01 g/mol
Valve connection: AFNOR C (21.7 x 1.814 SI - right-hand male)
CAS No.: 124-38-9
Single molecule: CO2 ≥ 99.9%
Impurities (see full details in the product data sheet): H2O (5 bar) ≤ 50; O2 ≤ 30; CO ≤ 5; NO/NO2 ≤ 2; Total sulfur (S) ≤ 1
Additional information: Warranty: 60 months
We use 100% renewable electricity to produce and fill gases in cylinders and frames.
Storage: 60 months

Safety & Transport
Hazards: Asphyxiation at high concentrations
Flammability range: Non-flammable
TRANSPORT: Official designation: Liquefied gas
UN No.: 1013
ADR class: 2
Classification code: 2A
ADR pictograms: Hazard pictograms as regulated (see safety data sheet for details)

Technical characteristics / specifications

• Reference: P0211M14R0A001
• Trade name: ALPHAGAZ™ 1 CO2
• Variation name: ALPHAGAZ 1 CO2 Bottle 14L
• Type / Package size: 14 L
• Capacity: 10 kg
• Pressure: NS
• Cap: Standard
• Relative density (gas): 1.52 (air=1)
• Relative density (liquid): 0.82 (water=1)
• Relative density (refrigerated): 1.03 (water=1)
• Molecular weight: 44.01 g/mol
• Valve connection: AFNOR C (21.7 x 1.814 SI - right-hand male)
• CAS No.: 124-38-9
• Purity: CO2 ≥ 99.9%
• Main impurities: H2O (5 bar) ≤ 50; O2 ≤ 30; CO ≤ 5; NO/NO2 ≤ 2; Total sulfur (S) ≤ 1
• Storage / Warranty: 60 months
• Energy used for production/filling: 100% renewable electricity
• Transport / UN / ADR: Liquefied gas · UN 1013 · ADR Class 2 · Code 2A
