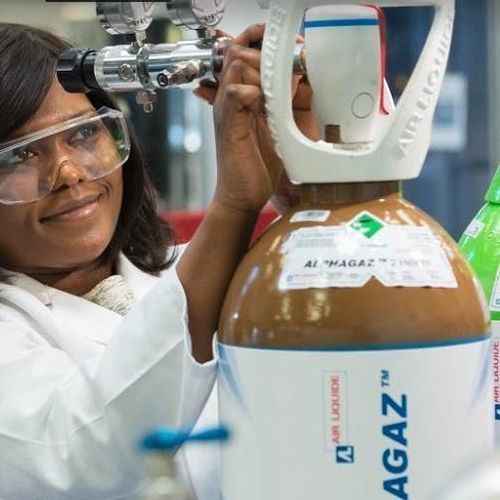

Industrial gas cylinder ALPHAGAZ™ 1

gasheliumHe

DESCRIPTION
High-purity laboratory gas suitable for analyses from percentage to ppm levels. ALPHAGAZ™ 1 Helium (He) is used as a carrier gas in gas chromatography, as instrument gas in mass spectrometry and elemental analysis, and for purge and zero-gas applications such as TOC and thermal analysis. In the semiconductor industry it is used for cooling and for leak testing.

Applications

• Carrier gas (GPC)
• Instrument gas (LC/MS, elemental analysis, etc.)
• Purge gas (TOC, thermal analysis)
• Zero gas

Benefits

• Low concentration of critical impurities suitable for routine analysis
• Quality documented on the supplied certificate of conformity
• Traceability via lot number
• Purity and long-term stability ensured by special cylinder preconditioning

Selection and service

• Reference gas suitable for analyses from % to ppm
• Available cylinder sizes: S11, M20, L50, V09
• Equipped with SMARTOP valve (easy opening and pressure gauge for internal pressure view)
• Stocked product with support from the expertise center from quote to delivery

Properties
Compressed gas, colorless and odorless. Non-flammable but an asphyxiant at high concentration. Quality controlled by ISO 9001 certified laboratories. Shelf life: 60 months.

Technical characteristics / specifications

• Reference: P0251
• Physical state: gaseous
• Relative density (gas): 0.14 (air = 1)
• Relative density (liquid 1 & 2): N/A (water = 1)
• Molecular weight: 4 g/mol
• Valve connection: AFNOR C (21.7 x 1.814 SI - right-hand male) — Frame connection: 38x2 (S)
• CAS No.: 7440-59-7
• Single molecule: He ≥ 99.999 %
• Total purity (Vol. abs): ≥ 99.999 %
• Guaranteed impurities: H2O ≤ 3 ppm; O2 ≤ 2 ppm; CnHm ≤ 0.5 ppm; CO ≤ 0.5 ppm; CO2 ≤ 0.5 ppm
• Additional information: Recommended for analyses from % to ppm; Guarantee: 60 months
• Color: colorless
• Odor: odorless
• Shelf life: 60 months
