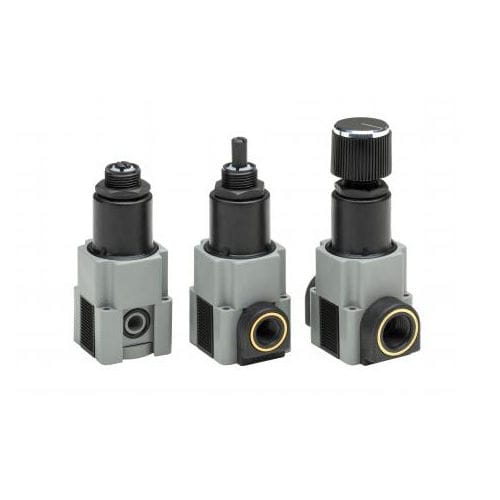

Relieving pressure regulator R4030 seriesmembranesingle-stagestainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- membrane
- Number of stages
- single-stage
- Material
- stainless steel, nylon, elastomeric
- Applications
- industrial
- Other characteristics
- miniature, relieving, modular
- Pressure
Max.: 30 psi
Min.: 0.5 psi
- Orifice diameter
Max.: 0.25 in
Min.: 0.125 in
Description
The Modular Subminiature Relieving Regulator is configured for accurate pressure regulation with minimal consumption. It will only relieve pressure after the output has risen above the setpoint. This feature prevents excess consumption in the system. Pressure compensated design improves the performance of supply pressure variation and flow characteristics.
The Unique Modular Dovetail design allows the regulator to be configured individually or assembled into a modular combination of pneumatic components.
Features:
Configurable Ports
Excellent Repeatability
Miniature Size
Non-Rising Stem with 20 Turns
Pressure Compensated Design
Very Low Bleed
Elastomeric Seat
Catalogs
No catalogs are available for this product.
See all of AIR Logic‘s catalogs
