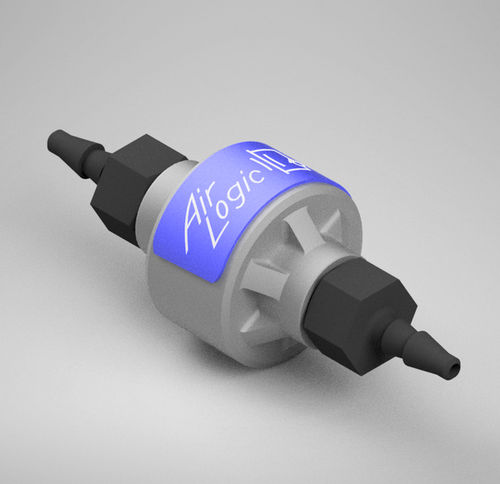

Differential pressure flow controller F2804404 series

volumetricpneumaticfor liquids

Directional Flow Controls apply orifice technology in one flow direction and free flow in the other. They work on the principal of Flow Restriction with the orifice diameter being identified in the part number. In addition to orifice diameter, Air Logic controls many smaller factors that have an impact on the total restriction of the orifice. A moving disk changes position based on the flow in the circuit. In the controlled direction, the orifice is the only path the media can flow through. In the opposite direction, the disk moves and the media is free to flow through the product unrestricted. Threaded connections are a convenient way to connect in a variety of applications. This product combines well with Air Logic's fitting product line for application specific requirements like swivel capability, and serviceable applications. Additional Information Directional Flow Controls are Factory tested in the direction marked on the product. All of the Air Logics products are precision molded, assembled and tested in America. Product marking indicates the orifice diameter and part number. Directional Flow Controls are non-adjustable and tamperproof method of flow control in one direction (Example: Air cylinder that moves fast in one direction, and slow in the opposite direction).
