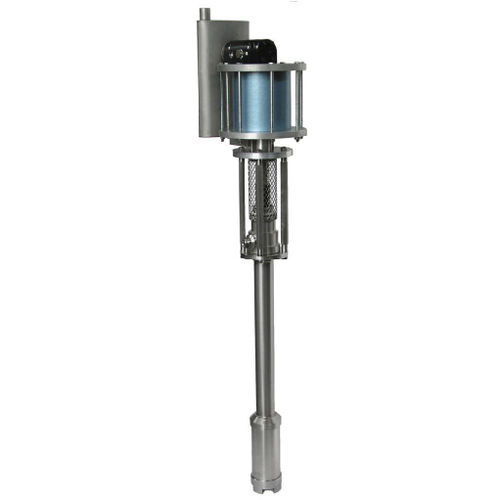

Pneumatic pump 2201/S100-2self-primingstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Applications
- transfer
- Material
- stainless steel
- Fluid specification
- for high-viscosity fluids
- Flow
71 l/min
(18.75622 us gal/min)- Pressure
Max.: 6 bar
(87.023 psi)Min.: 2 bar
(29.008 psi)- Output diameter
1.5 in
- Weight
73 kg
(160.94 lb)
Description
PNEUMATIC MOTOR PUMP
Ratio 8:1 - 71 l.p.m.
application: direct priming for high viscosity products
use: transfer
PUMP PERFORMANCE
Ratio: - 8:1 B
Max Rec’d cycles / minute: - 70
Displacement Per cycle: - 1180 cc
Air consumption @ 6 bar: - 4000 N.l.p.m.
PUMP SPECIFICATIONS
Lower pump material: - Stainless Steel
Pumping stem material: - 316 Stainless Steel with HDCC ceramic coating
Cylinder material: - 316 L Stainless Steel
Seal set - UHMW-PE
Air motor: - 2201
Motor diameter - 200 mm
Stroke: - 150 mm
Multistage silencer: - 2250-70 – Stainless Steel
Air inlet: - G 3/4″ (M)
Material inlet: - Direct priming
ACCESSORIES
Air FR+L: - 3422-CA
Pneumatic elevator - 210725-1/2
Mounting bracket: - 210703
Delivery filters: - 96430
