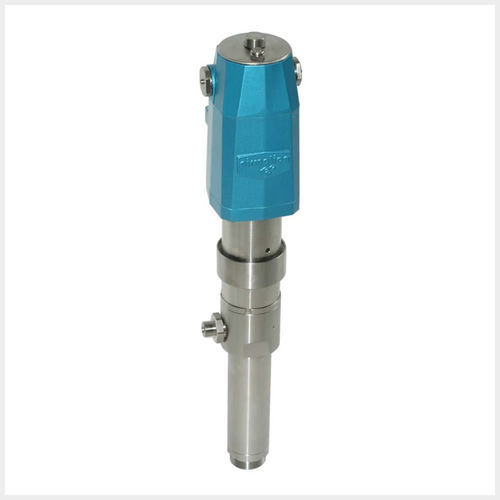

Reciprocating piston air motor 319/495 IC-D

for pumpstainless steel

Product
Air-driven pump motor for direct priming and transfer of medium-viscosity products. Model 319/495 IC-D with 8:1 ratio, delivering up to 9.6 l/min at 70 cycles/min. Suitable for transfer and pressure delivery applications.

Performance

• Air inlet pressure range: 2-6 bar
• Ratio: 8:1 B
• Max recommended cycles/minute: 70
• Displacement per cycle: 160 cc
• Flow @ 70 cycles/min: 9.6 l/min
• Air consumption @ 6 bar: 600 N.l/min

Specifications

• Lower pump material: Stainless steel
• Pumping stem material: Stainless steel hard chrome (optional: 316 SS high-density ceramic coated)
• Cylinder material: 316L stainless steel
• Seal set: Teflon/Carbographite specified compound
• Air motor: 319
• Motor diameter: 100 mm
• Stroke: 90 mm
• Air inlet: G 1/4" (F)
• Material inlet: Direct priming
• Material outlet: G 3/4" (M) – G 1" (M) optional
• Integrated suction filter: 685015-30
• Weight: 18 kg

Accessories

• Air FR+L: 1422-CA
• Pneumatic elevator: 210720-1/2
• Mounting brackets: 210695-1-GM
• Delivery filters: 635, 96330, 97140

Technical specifications

• Air inlet pressure range: 2-6 bar
• Ratio: 8:1 B
• Max recommended cycles/minute: 70
• Displacement per cycle: 160 cc
• Flow @ 70 cycles/min: 9.6 l/min
• Air consumption @ 6 bar: 600 N.l/min
• Lower pump material: Stainless steel
• Pumping stem material: Stainless steel hard chrome (optional: 316 SS high-density ceramic coated)
• Cylinder material: 316L stainless steel
• Seal set: Teflon/Carbographite specified compound
• Air motor: 319
• Motor diameter: 100 mm
• Stroke: 90 mm
• Air inlet: G 1/4" (F)
• Material inlet: Direct priming
• Material outlet: G 3/4" (M) – G 1" (M) optional
• Integrated suction filter: 685015-30
• Weight: 18 kg
